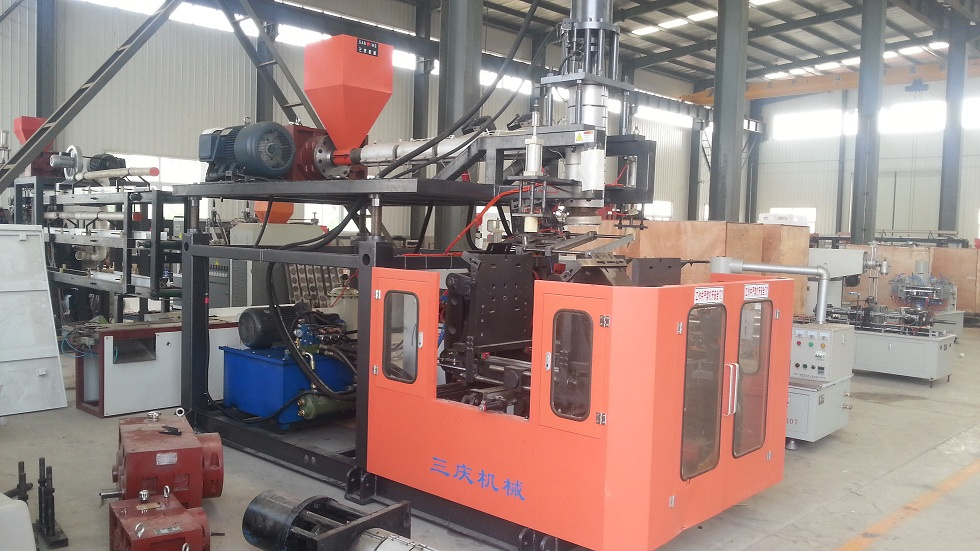

Plastic toys blow molding machine
SQDD-25L machine could produce below type of hollow product:
-Child motorbike
-plastic hollow Toolbox
Production Capacity:
40 pcs per hour
Material:
HDPE/PP
Plastic MotorBike:
Model
Parameters |
SQ-11 |
|
Max. Product Volume(ml) |
5000 |
|
Screw Rod Dia.(mm) |
75 |
|
Screw Rod Heating Power(KW) |
0.336 |
|
Heating Head Power(KW) |
5 |
|
Motor Power of Hydraulic Pump(KW) |
4.5 |
|
Motor Power of Extruding Machine(KW) |
18.5 |
|
Screw Rod Length/Dia. Ratio |
25:1 |
|
Product Max. Dia.(cm) |
18 |
|
Production Capacity(pcs/hour) |
120 |
|
Distance of Mold Board(mm) |
230 |
|
Thickness of Mould(mm) |
150-220 |
|
Width of Mold Board(mm) |
303 |
|
Air Consumption(m3/Min) |
0.5-0.6 |
|
Raw Material |
PE/PP/PVC |
|
Weight of Machine(KG) |
3000 |
|
Machine Size(mm) |
1960x1180x1960 |
|
Force of Closing Mold(KN) |
60 |
|
Distance of Mold(mm) |
160-500 |
|
Speed Control Method |
PLC |
Cangzhou Sanqing company is a manufacturing group, it includes two kinds of main products: Stainless steel press fitting, blow molding machines. It also export some other valuable products such as tire valves.
We have two main plants, one is for stainless press fitting, another plant is for blow molding machine.
Stainless steel press fitting includes stainless pipes, stainless press fittings, size range since DN15-DN100. It includes raw material: SUS304 and SUS316L. The stainless steel press fitting already been used for many years in the market and it is under process to develop more international markets. Sanqing is one of the leading manufactures for stainless steel press fittings.
Blow Molding machine is another main products, it including pneumatic type blow molding machine and hydraulic blow molding machine. The machines are able to produce hollow products since 1 ml to 40 Liters. Nowadays, our machines are already full of China and Sanqing brand is a famous brand for this plastic field.
Rotational blow molding machine, or we call it rotational bottle making machine is the star machine and main machine, since it has been developed, it has been improved gradually, now it is a very successful machine and shipped to many foreign countries such as: Russia, Mongolia, Pakistan, India, Malaysia, Kenya, South Africa, Brazil, Mexico, Paraguay, Dominican Republic etc.
So Sanqing brand is keep on growing and hope we could cooperate together to grow together.
