Raw Material:
PP Pellets
Final Products:
PP Pipes
Material Feeding:
Loader
Loader Type:
Vacuum Loader
Material Drying:
Hopper Dryer
Diameter:
16-63mm
Printer:
Available
Pipe Collecting:
Stacker
Marking Line:
Available
Co Exruder:
with
Certification:
ISO9001:2008
Automation:
Automatic
Product Type:
PP Pipe
Computerized:
Non-Computerized
Product Description

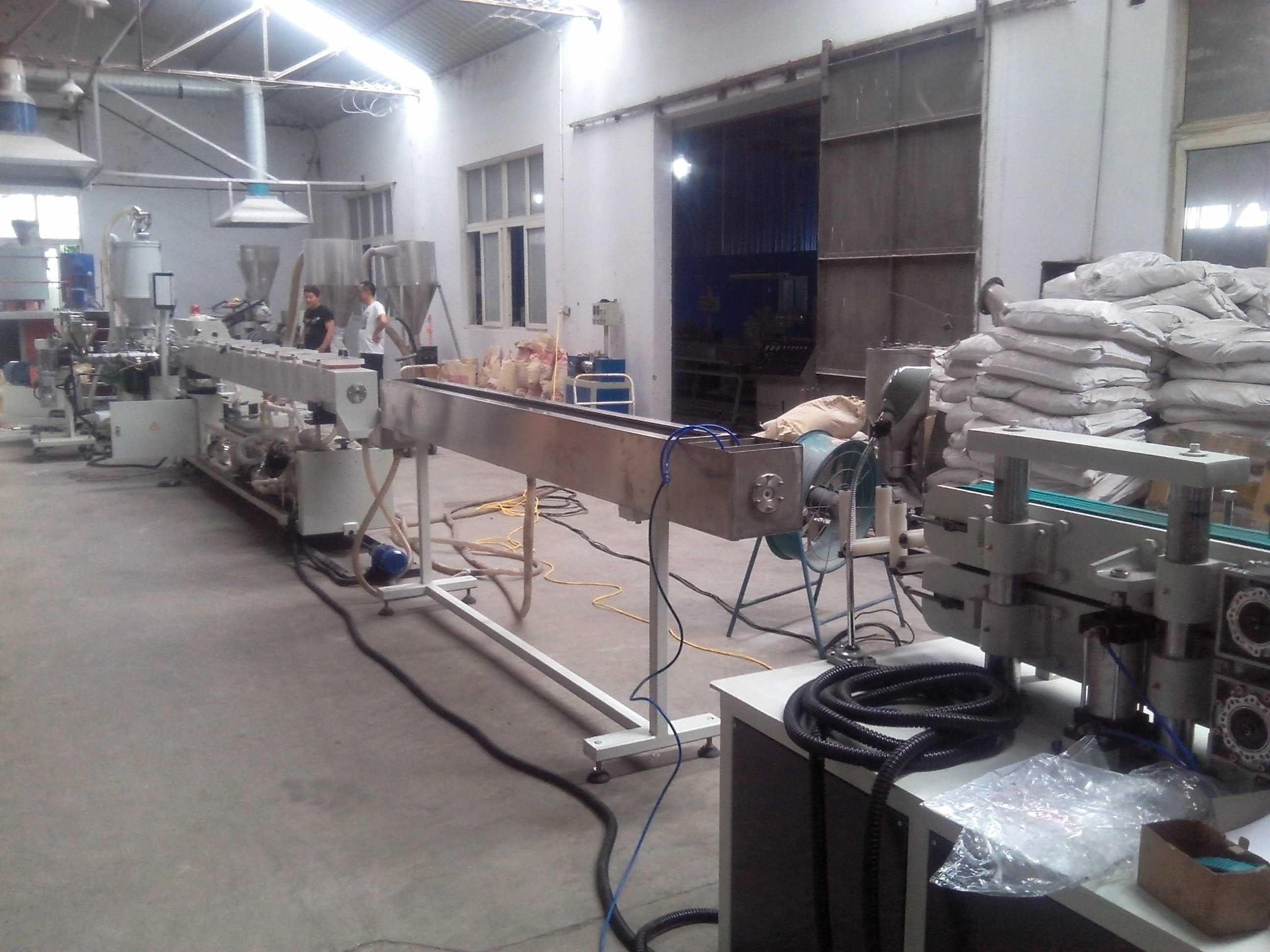

PP pipe extrusion machine line
This pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
Model
PE63
PE160
PE315
PE400
PE500
PE630
Produced Pipe Specification(mm)
16-63
75-160
110350
110-400
160-500
200-630
Calibration length(mm)
6000
6000
6000
6000
6000
6000
Degree of vacuum(Mpa)
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
Max hauling force(N)
10000
15000
20000
25000
30000
50000
Max Hauling speed(m/min)
10
6
4
3
2
1.4
Effective hauling length(mm)
1000
1500
1500
1500
1800
1600
Compressed air consumption(m3/h)
0.4
0.6
1.0
1.2
1.5
2.0
Refilled water volume(m3/h)
5
6
7
8
9
12
Line length(m)
20
22
30
30
36
42
