Diameter:
16-110mm
Double Pipe Extrusion:
16-63mm
Waste Material Recycling:
Crusher, Miller
Multi Layers Extrusion:
Available
Electrical Equipments:
CE Available
Wall Thickness:
Depends
Machines:
PPR Pipe Line
Raw Material Mixing:
Mixing Machine
Marking Line:
Available
Capacity:
Max. 300kg/H
Type:
Pipe Extruder
Screw:
Single-Screw
Automation:
Automatic
Computerized:
Computerized
Plastic Processed:
PPR
Product Description

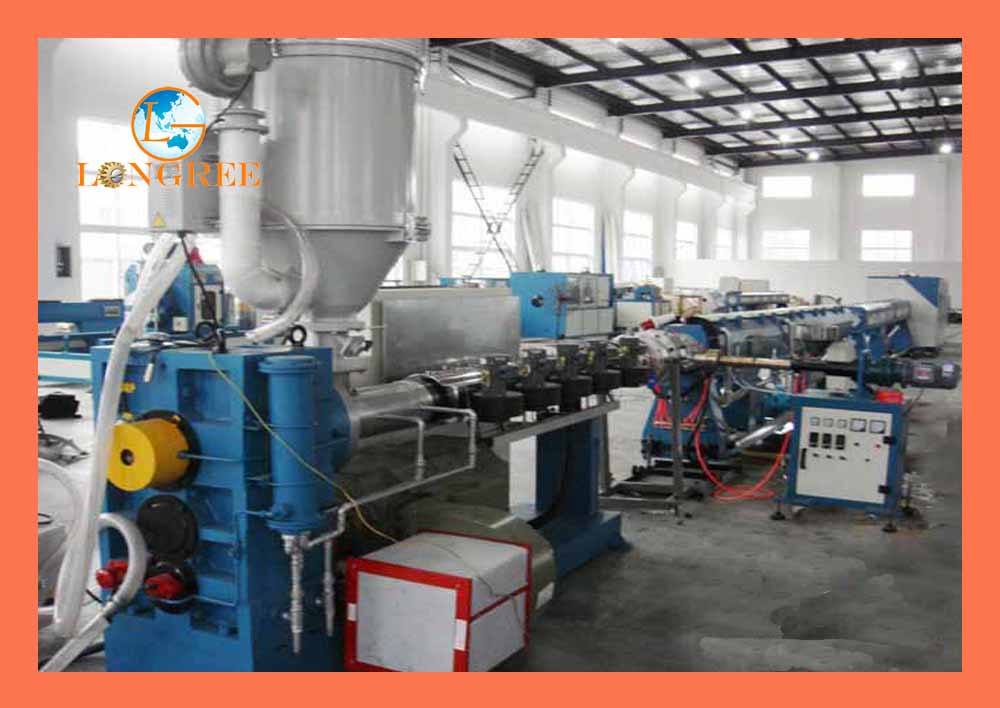

PPR Pipe Line
This pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
Model
LGPR-F63
LGPR-F 160
Produced Pipe Specification(mm)
16-63
75-160
Calibration length(mm)
6000
6000
Degree of vacuum(Mpa)
0.03-0.08
0.03-0.08
Max hauling force(N)
10000
15000
Max Hauling speed(m/min)
10
6
Effective hauling length(mm)
1000
1500
Compressed air consumption(m3/h)
0.4
0.6
Refilled water volume(m3/h)
5
6
Line length(m)
20
22
