Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Material: |
Steel |
Shaping Mode: |
Preform Mould |
Product: |
Plastic Mold |
Product Description

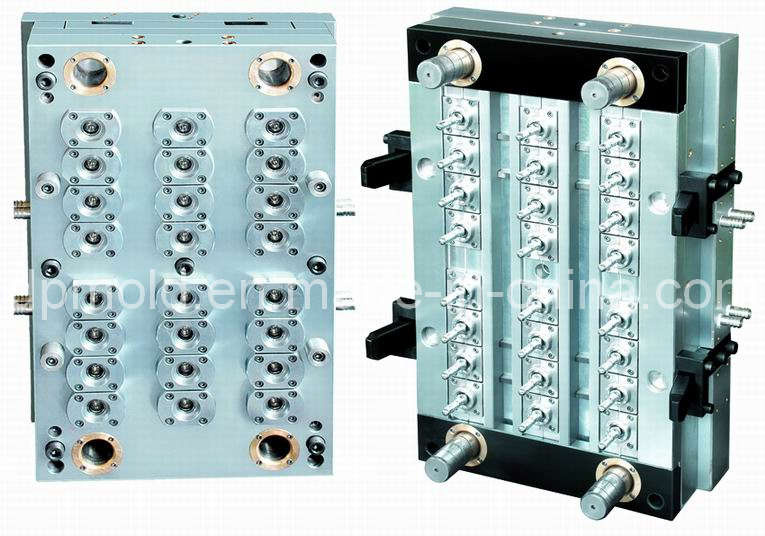

Preform Mould:
Design different knids of mold structure, such as Long Tail Mold, Short Tail Mold, Pneumatic Valve Mold, etc.
Mold cavity from 1 to 48.
Electric control system with simulating stretch testing to improve yield rate.
Adopt advanced technique to make each cavity self-lock, and ensure mold concentricity(tolerance less than 0.08mm).
The materials of core and cavity are made of mirror corrosion resistance or plastic mold steel imported from Sweden or Germany.
International standard screw neck, imported nitrided steel with high hardness and long life time.
Adopt advanced hot runner system with point to point control system, ensure uniform heating, which brings high-quality products.
Valves gate mold without tail, reduce the labor force.
At least 2 million times life-time guarantee.
ITEM |
CONFIGURE |
Core |
ASSAB S136 Germany 2316 China S136 China 2316 China 3Cr13 |
Cavity |
Neck |
Slide block |
P20 |
Lubricating |
Graphite copper plate |
Other plates |
China 50# or P20 |
Valve pin |
Japan high speed steel SKD51 |
Seal in valve pin |
America Dupont |
Nozzle ( upper part ) |
Beryllium Bronze |
Nozzle (lower part ) |
H13 |
Heating elements |
Germany or China |
Injection seal |
Japan or China |
TaiZhou HuangYan DongPeng Mold Factory located in famous mold hometown-HuangYan, Which is a professional manufacturer of PET Preform Mold, Cap Mold and Blow Mold. By researching and innovating consistently in PET Preform Mold for many years, our mold is popular home and abroad. As a result, we become an outstanding one in the industry.
We have a high-class and professional technical team, advanced mold equipment, CAD/CAM/CAE system and CNC technique. All of these ensure the high quality of mold. At the meantime, we try our best to offer better service. Not only from designing to manufacturing, but also from testing to after sales, we will serve continously as a serious promise.
We stick to "customer foremost, pursue win-win" as our corporate purposes. As we all know, no customer, there will be no future. So we pay attention to evry details that customers request, and do our best to implement. Urgency, and think in the way customers want to. We pledge to meet all the needs of customers with excellent quality and sincere service.
Because of professional, so fine; Because of zealousness, so excellence. We will unswervingly follow the road specialization, and build brand of "DongPeng" earnestly.
