Low Electricity Consumption:
High Speed
High Usage:
All Servo Motor
Automatic Counting:
Automatic Stacking
Automatic Forming:
3-Row Mould
PP Cups:
PS Cups
Pet Cups:
180mm Depth Cups
Product Description
APPLICATION:

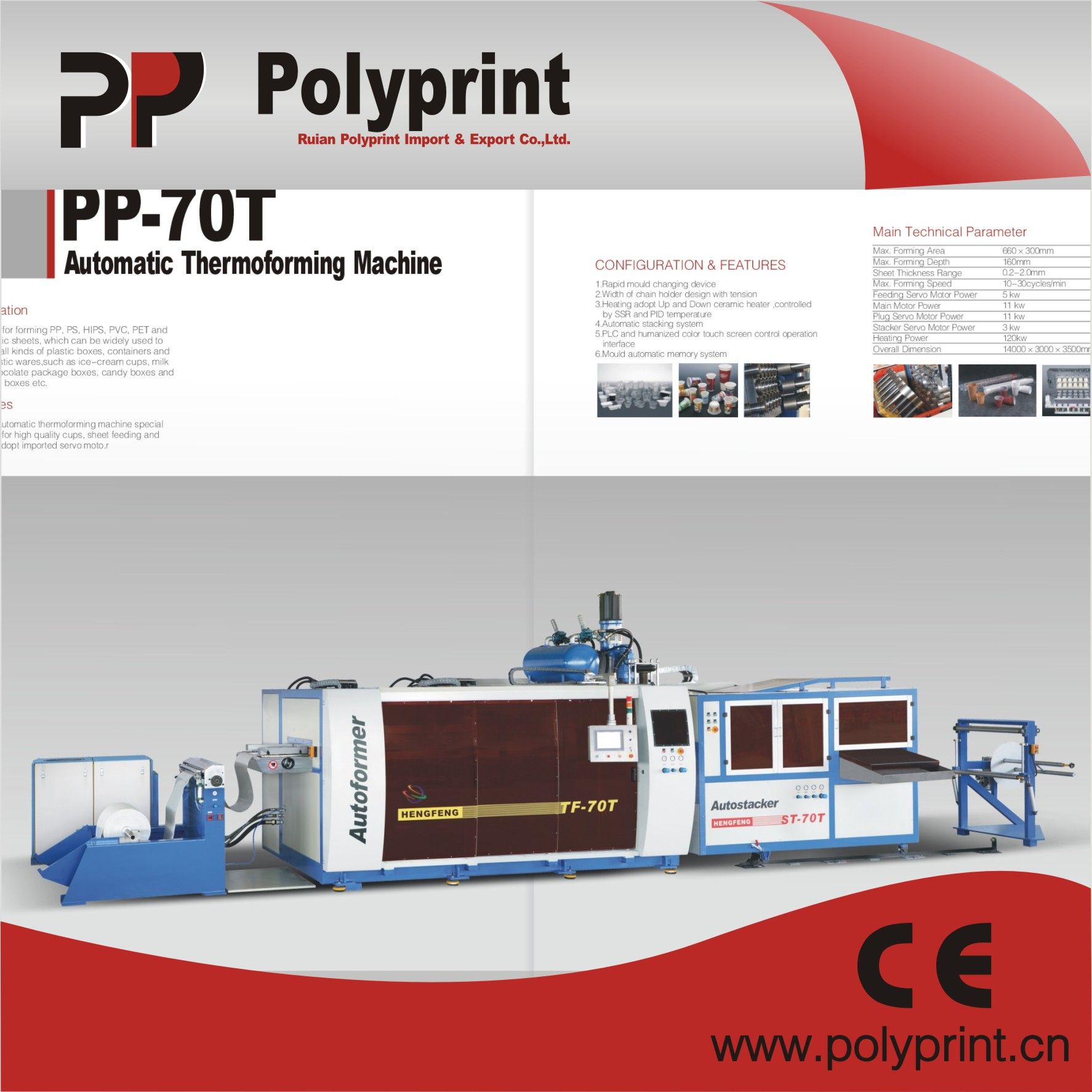

PP-HFTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
FEATURE: Rapid mould changing device Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet. Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control Automatic stacker system PLC and humanized color touch screen control operation interface. Mould automatic memory system.
1- Max. Forming Area
680×325mm
2- Max. Forming Depth
160mm
3- Sheet Width Range
550-720mm
4- Sheet Thickness
0.4-2.0mm
5- Max. Roller Diameter
Φ1500mm
6- Air Pressure
0.68-0.8mpa
7- Water Consumption
50L/min
8- Air Consumption
3000L/min
9- Speed
10-35 Cycles/min
10- Power (Three Phase Four Wire)
3×380V+NP+PE.50HZ
11- Heating Power
120kw
12- Main Motor Power
11kw
13- Feeding Motor Power
4.4kw
14- Scrap Rewinding Motor Power
0.55kw
15- Machine Weight
10000kg
16- Diameter
14000×3000×3500mm
Wenzhou Hopeful Machinery Co., Limited specializes in manufacturing plastic PP and PS extruder machine and thermoforming machine. Such as plastic sheet extrusion line, thermoforming machine, and on-line cup making machine with a batch of semi-senior and senior technical experts, our company has obtained ISO9001 quality system certificate which combined design, development, manufacture, installation and service in to system.
Our products are mainly exported to America, Europe, southeast Asia and southwest Africa. Most of our products are accepted and favored by our clients from all over the world. With the principle of scientific management, our company actively carries out ISO9001 quality management system and implements this standard strictly.
The slogan that best epitomizes our approach to quality is: Service must run ahead of time, the customer is our priority, take technology as our lead, and production must be carried out meticulously and with care. Based on these principles our company has been successfully improving the quality of its products, talking active measures and making reasonable use of its resources.
What we are now striving for is to transform our company into the No 1 packaging manufacturer by exploiting our qualities and promoting ourselves publicly, building ourselves a better profile within the industry. We are looking for serious partners to join us in fruitful commercial ventures. Contact us today to find out more.
