Type:
Pipe Extruder
Screw:
Twin-Screw
Automation:
Automatic
Computerized:
Computerized
Plastic Processed:
PVC
Product Description

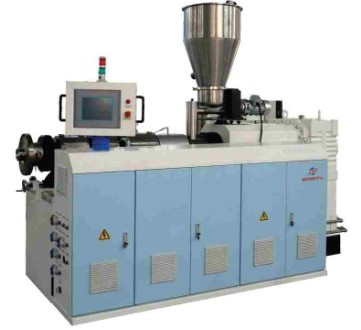

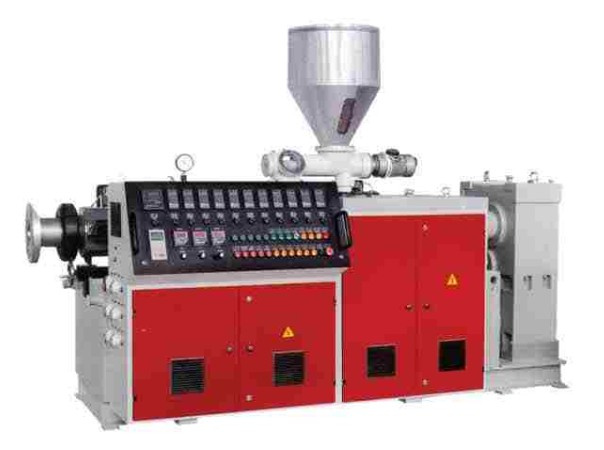

Conical Twin-Screw Plastic Extruder
Application & Features: 1.SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments. 2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc. 3.The screw has applied oil cooling system. Bareel is cooled by special wind cooling system. 4.Vacuum exhausting and material feeding device is fixed with machine.
Model
SJSZ51/105
SJSZ55/100
SJSZ65/132
SJSZ80/156
SJSZ92/188
Screw diameter(mm)
51/105
55/100
65/132
80/156
92/188
Quantity of screw
2
2
2
2
2
Max. rotation speed of screw(r/min)
40
38
38
37
36
Effective length of screw(mm)
1200
1200
1440
1800
2500
Main motor power(kw)
18.5
22
37
55
110
Productuion capacity(kg/h)
100
150
250
400
750
Center height(mm)
1000
1000
1000
1100
1200
Dimensions(L*W*H)mm
3360*1290*2127
3620*1050*2157
3715*1520*2450
4750*1550*2460
6725*1550*2814
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
