North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Self-Selection
Certification:
SGS
Automation:
Automatic
Product Type:
PVC Profile
Computerized:
Computerized
Screw:
Double-Screw
Customized:
Customized
Product Description
Feature & Function:

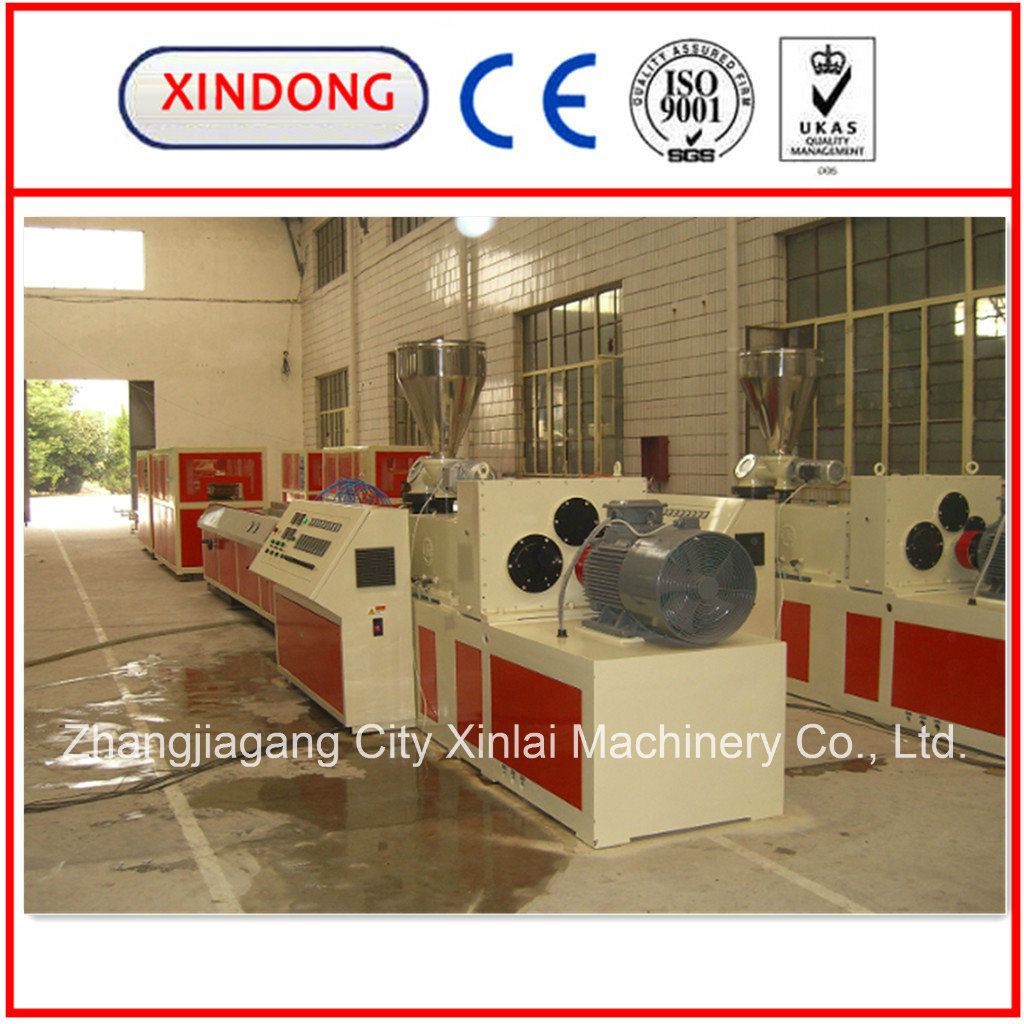

Plastic profile extrusion line is mainly used to produce PVC, PP and other material door, window, midheaven board, special section profile and so on. The line is composed by extruder, mould, vacuum calibrator, haul off machine, cutter andstacker. It can produce different sections and thickness of profile by changing the type of machine and mould.
()\shaping table model number
ZDY240Tvacuum shaping table
1\vacuum air pump number
4
2\max vacuum air level
-0.090Mpa
3\shaping table length
6000
4\models fixed
width between centres
320mm
5 vacuum air pump connector number
32pcs
6\max sucking rate
180m3/h
7\vacuum air pump motor
2×5.5KW,
1×4KW(jade ring)
8\water pump motor
4KW+2.2KW(jade ring)
9\sink Material
stainless steel
10\siamese coupling number
32pcs
11\track surface height
890~1000mm
12shaping table construction
bendway
13\shaping table Material
stainless steel
14\vacuum air pump
ningbo
()\haul off cutting drugger model
QY-QGY240T haul off cutting drugger
1\max tractive force
35000N
2\max pulling speed
0.3~4m/min
3\track width
240mm
4\track active length
2350mm
5\haul off drugger number and motor
2×1.5KW (ABBtransducer)
6\cutting section point of saw bit
down and up cut
7\dust exhaust apparatus
built-in
8\stressed by air
0.5Mpa
9\max cutting inches(width×height)
240×65mm
10\machine center height
1050±50mm
()\FBY300 panel turnover machine
1\Unloading-panel power
cylinder as power
2.Unloading-panel material
stainless steel
()environmental challenge
1\working temperature
0~60 degree centigrade
2\water temperature
15 degree centigrade
We, Zhangjiagang City Xinlai Machinery Co., Ltd, are professional manufacturer for plastic machinery located in Zhangjiagang, which is 2 hours away from Shanghai.
Our main products are:
1. Plastic extruder
2. PE/PP/PVC pipe production line 3
. PVC profile extrusion line
4. PE/PP/PVC/PET recycling granulation line
5 assistant machines, like shredder, crusher, pulverizer, loader, mixer, dryer, winder, belling machine, mold, printer, etc.
We are a manufactory gathered with designing, developing, producing and selling. By many years of concentrated business and combined with the practical experience, our products form serialization and standardizatio granually. Now we own our brands are "XINLAI"& "XINDONG", and products have passed CE & SGS certificate.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market, like South-East Asia, Middle-Ease, Africa, South America, etc. We wish to cooperate with you to create a bright future and mutual benefit.
Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
