North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:
16-630mm
Double Pipe Extrusion:
16-63mm
Waste Material Recycling:
Crusher, Miller
Auxiliary Machines:
Chiller, Printer, Belling Machine, etc
Electrical Equipments:
CE Available
Wall Thickness:
Depends
Machines:
PVC Pipe Line
Raw Material Mixing:
Mixing Unit(Hot&Cool)
Marking Line:
Available
Material Loading:
Flexible Screw Loader
Type:
Pipe Extruder
Screw:
Twin-Screw
Automation:
Automatic
Computerized:
Computerized
Plastic Processed:
PVC
Product Description

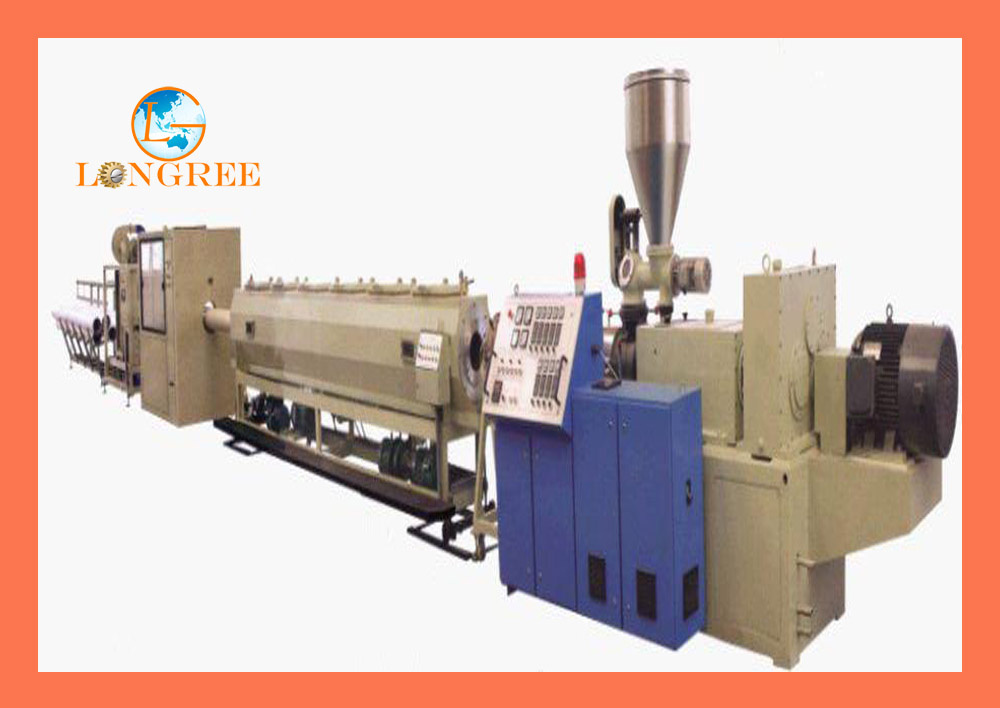

PVC Pipe extrusion Line
1. This PVC pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
2. Optional equipments: Loader, crusher, grinder
3. Raw material is mixed by mixing unit
Model
PVC63
PVC160
PVC315
PVC400
PVC500
PVC630
Produced Pipe Specification(mm)
16-63
75-160
110350
110-400
160-500
200-630
Calibration length(mm)
6000
6000
6000
6000
6000
6000
Degree of vacuum(Mpa)
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
-0.030.08
Max hauling force(N)
10000
15000
20000
25000
30000
50000
Max Hauling speed(m/min)
10
6
4
3
2
1.4
Effective hauling length(mm)
1000
1500
1500
1500
1800
1600
Compressed air consumption(m3/h)
0.4
0.6
1.0
1.2
1.5
2.0
Refilled water volume(m3/h)
5
6
7
8
9
12
Line length(m)
20
22
30
30
36
42
