Power Supply:
380V,50Hz or as Per Your Request
Capacity:
100-500kg/Hr
Weight:
11t
Dimension:
14m*2m*2.8m
Raw Material:
PVC
Screw:
Double-Screw
Automation:
Automatic
Computerized:
Computerized
Certification:
SGS
Inverter:
ABB
Product Description

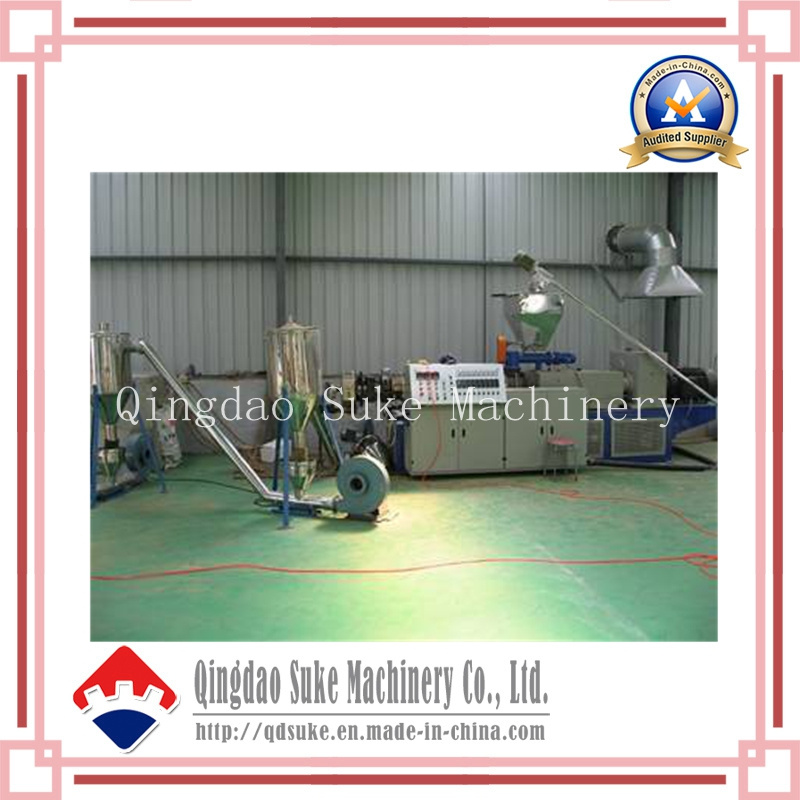

PVC granule making machine
Instruction: The production line is mainly uesd in Hot-cutting of PVC and other plastic. In general the production line is composed of twin screw extruder, ( exchagne filter), cutting mould and device, (vibrating screen), cooling and fans device and storage.
We can design according to your required.
Now the PVC granule making machine is one of our featured machines. If you are interested in it, pleased feel free to contact us. It is pleased to serve you.
Type
SJZ-55/110
SJZ-65/132
SJZ-80/156
SJZ-92/188
Screw Diameter(mm)
55/110
65/132
80/156
92/188
Screw Quantity(mm)
2
2
2
2
Direction of Screw Rotation
Different direction, Outward direction
Screw Speed(rpm)
1-30
1-34.7
1-36.9
1-32.9
Effective Screw Working Length(mm)
1200
1440
1800
2500
Main Motor Power(kw)
22
37
55
90
Barrel Heating Power(kw)
18
24
36
86.8
Output(kg)
80-140
250-300
320-450
500-600
Center Height(mm)
1000
1200
Weight(kg)
3500
4000
5000
10000
Dimension(mm)
3620× 1050× 2157
4235× 1520× 2450
4750× 1550× 2460
6725× 1550× 2841
Qingdao SUKE machinery Co. Ltd was founded in 2002 year. Our company is the first independent research and developed of PE double-wall steel hollowness pipe machine in China. The company main products is: PET sheet product machine/ WPC profiles machine/PERT-AL-PERT pipe machine/ PVC, PE, PP sheet ma chine...etc.
We have advanced machining system, strong technical reserve and perfect inspection system, with high-rank engineers of years' experiences in machine processing, electric automation and long-term sustaining cooperation with a number of colleges and universities. Through borrowing and researching advanced international technologies and engineering in plastic processing, we co-developed and manufactured products such as WPC(wood plastic composite), pipes, profiles, rods, sheets, reinforced bands, packing, stretched filament and ropes, cables, and plastic kneading and re-generation products, up to 10 categories, and 100 specifications, with high automation, high capacity, and stable performances. Our plastic products are involved into the fields such as industry, agriculture, woods, state defense, ocean, mineral, power of electricity, and urban building etc. And our machines are well sold in domestic markets, and also sold to Russia, Ukraine, Turkey, Iran, India, and many countries in South-east Asia, confirmed and appraised by customers from both home and broad, which already
Made sustaining collaborating partnership relations with us.
The company persists in the core idea of satisfactory of the customers and consistent innovation. With the advanced technology and manufacturing equipment, advantaged in creative and first class team, it provides customers with quicker response and high quality services.
