Product:
Thin Film Coating Machine
Business Type:
China Manufacturer/Supplier
Technology:
PVD Coating
Structure:
Vertical, Single Door
Coating Color:
Gold, Rosegold, Silver, Black, Blue Ect
Size:
Customized
Control System:
Manual Automatic All-in-One
Operating System:
PLC Touching Screen
Coating:
Vacuum Coating
Type:
Coating Production Line
Substrate:
Glass, Metal, Ceramic, Mosaic, Crystal Ect
Product Description
HCVAC-MAKE YOUR WORLD MORE BEAUTIFUL
PVD Thin Film Coating Machine/PVD Thin Film Deposition Machine/Thin Film Deposition System
PVD thin film coating machineis a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: PVD thin film coating machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment
PVD thin film coating machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

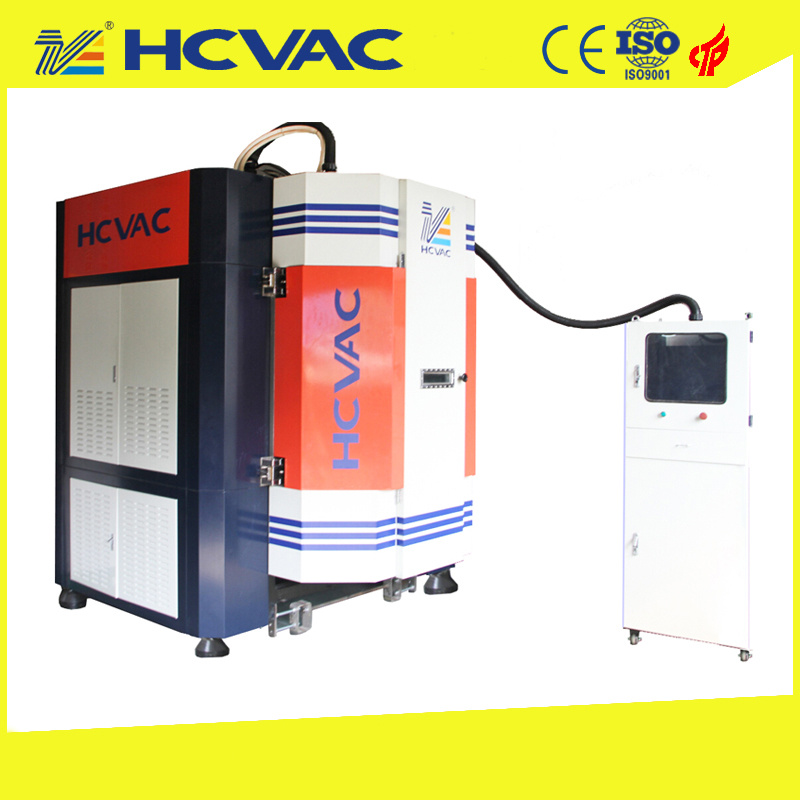

This is our machine: Samples coated by our machine: Specifications:
Mode Dimension
LH-800
LH-1250
LH-1416
LH-1618
800*1000mm
1200*1500mm
1400*1600mm
1600*1800mm
Coating mode and main confirguration
Eight multi-arc targets
Twelve multi-arc targets
Fourteen multi-arc targets
Twenty multi-arc targets
Power source
Electric-arc power, Filament power, Pulsed bias power supply
Process gas control
Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure
Vertical side opening door, pump system postposition, double water cooling
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode
Public rotation Frequency control: 0-20 rotation per minute
Measure mode
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark
We can design the dimension of the equipment according to customer's special technique requirement.
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person:Mandy Liu
Phone No+8615989615980
