North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:
Bend Pipe
Condition:
New
Delivery:
30~60 Days
Automatic:
Automatic
Power Mode:
Hydraulic
Way Of Forming:
Hot Induction by Medium Frequency Power Source
Finished Products:
Carbon Steel Bends, Fittings
Certificate:
CE
Trial Before Shipment:
Yes, by Small Size to Check Working of Each Part
Guarantee:
1 Year of Whole Machine, 3 Months for Spares
Forging Forming Method:
Mold Forging
Product Description

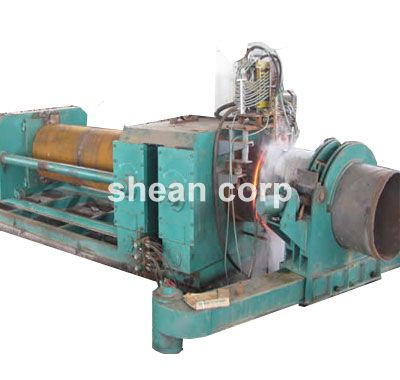

China OD. 325mm-1220mm R. 2.5-20D Steel Pipe Induction Bending Machine
Shean is specilized in producing China OD. 325mm-1220mm R. 2.5-20D Steel Pipe Induction Bending Machine and can do according to customer requirements.
China OD. 325mm-1220mm R. 2.5-20D Steel Pipe Induction Bending Machine heats the pipe inductively over a small cross-section, while the pipe is mechanically driven through a watercooled induction ring. The bending of the pipe is caused by means of a rotating arm on a pivot that, at the same time, determines the radius of the bend. As the arm is completely free adjustable between its minimum and maximum radius.
Radius of China Induction Pipe Bending Machine: 2.5D-10D
Thickness: 10mm-80mm
Material: Carbon steel, Alloy steel, Stainless steel
Drive type: Hydraulic, chain
Shean also make pipe bending machine, induction elbow machine, pipe expanding machine, hydraulic tee machine, pipe bevelling machine etc.
Serial number
Max diameter
Max thickness
Stroke of cylinder
Quantity of cylinder
Max thrust
(mm)
(mm)
(mm)
(piece)
(t)
1
1420
20
6500
4
670
2
1220
20
6500
4
600
3
1020
20
6500
4
500
4
820
20
6500
4
400
5
720
20
6500
4
320
6
630
20
6500
2
300
7
530
14
6500
2
160
8
426
14
6500
2
130
9
325
14
6500
2
84
10
219
12
6500
2
65
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
