vacuum degassing for liquid silicone pu pvc
Use of Vacuum Degassed Machine: through emptying vacuum to eliminate bubble in liquid PVC ,silicone pu and orther raw materials.
configuration and performance ;
1. L1010*W850*H 980(work plates)/1630mm(total);
Equip 30L vacuum pump China brand XUNDA,380V-3KW,
A plane vacuum cover size:L3 50*W 350*Deepness 50 mm
A groove vacuum cover size: L350*W350*Deepness 270 mm
2.Plane cover is for mould vacuum degassing,groove is for Barrel material vacuum degassing.using manual valve to operate. equiped two stainless single way Valve, to guaranty two side vacuum degassing same time will not be affected by any.

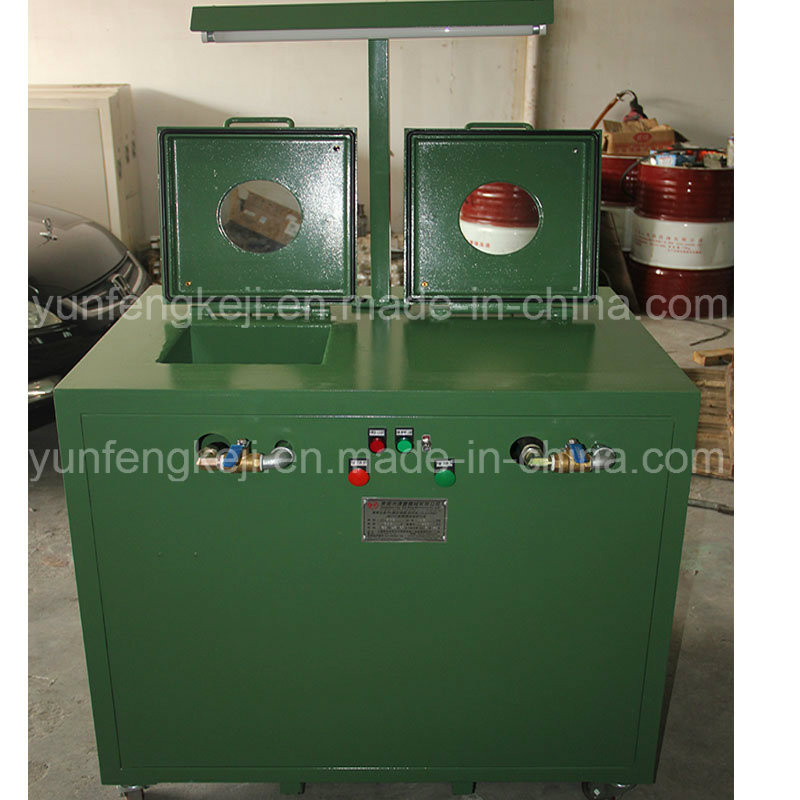

3.Up of the machine install a daylight tube, vacuum cover is with a big transparent glass, in order to facilitate worker to see inside clear, will not flow out the material, machine Foot install four active iron wheel,convenient to move to any place.Vacuum pump motor equip stat and stop button, start indicator Light, also equipped motor overload and phase protection device.
4.Vacuum oil need to change the new oil every 3 month normally.the seal ring on the vacuum cover need to change sealing rubber Using for 1 year., manual valve change the new every 3 month normally. also depending on the time and whether there is leak.
Model |
YF-C09 |
External dimension(mm) | L1010*W850*H 980(work plates)/1630mm(total);
|
| Pump Power(KW) | 380V-3KW |
| Vacuum dimension(mm) | A plane vacuum cover size:L350*W350*Deepness 50 mm
A groove vacuum cover size: L350*W350*Deepness 270 mm |
| Weight(KG) | 300 |
| Voltage (V) | 380V-50HZ |
Notes
1. We can according to different industry and different needs of customers to make the best quality equipment program.
2. our company adhering to the" credibility for the soul, quality is basic" of the enterprise purpose.
3. Our company has mature industry leading technology, rich practical experience and comprehensive after sales service, we won the praise of the new and regular customers from China mainland, Hong Kong, Taiwan, Southeast Asia, Europe and so on.
4. Customers' trust is the source of our motivation! We warmly welcome the new and regular customers come to visit our company, communication, thank you!
Thank you very much for your nice attention and hope we'll have business chance in the future!
