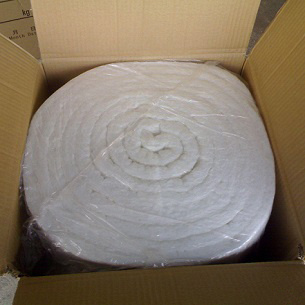

Refractory Ceramic Fiber Blanket 1430 Hz
Price: |
US $ 0.01/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
Prod Model: |
1430C, HZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Temperature Grade: |
1260c-1430c |
Standard Size: |
7200X610X25mm ; 3600 X610 X 50mm |
Density: |
64-160 Kg/M3 |
Delivery Time: |
Usually for Regular Order Within 14 Days |
Shape: |
Ceramic Fiber Blanket |
Manufacturing Technique: |
Jilt Silk Rug |
Kind: |
Ordinary Ceramic Fiber |
Product Description
Ceramic Fiber Blanket on SALE
NR high temperature ceramic fiber blankets are made from selected high quality spun ceramic fiber, double sides mechanically needling makes it high strength and surface integrity ,NR ceramic fiber blanket have a good character of superior insulating performance, light weight, flexibility, resilience and chemical resistance, low thermal conductivity, low heat storage.Ceramic fiber boards are available in a variety of temperature ratings, densities, thicknesses, widths and lengths, and custom vacuum formed shapes.
Common Grade: Max service temperature 1100C[1800F] Standard Grade: Max service temperature1260C[2300F]
High Purity Grade: Max service temperature 1260C[2300F] Zirconia Grade: Max service temperature1430C[2600F]
Typical Application of NR Ceramic Fiber Blanket
High temperature pipe and casting mold insulation.
Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers,
Duct and turbine insulation- Forging furnaces linings- High-temperature seals and gasket
Furnace door seals -Glass furnace crown insulation -Heat processing equipments
Car bottom furnace lining insulation -Fire protective insulation or linings
NR Ceramic Fiber Blankets Characteristics
Double needled blanket -Low density -Low thermal conductivity -Shorter heat up and cool down time
Resilience and resistance to thermal shock -Flexible and easy to cut and install
Contain no organic binder -Asbestos free
Standard Density : 4, 6, 8 lbs./cu. ft. (64, 96, 128 kg/m3)
Standard Thickness: 1/2, 1, 1-1/2, 2 (12.5mm, 25mm, 38mm, 50mm)
Standard Width: 24 and 48 (610mm and 1220mm)
Standard Packaging: In plastic bags and then in cartons
Delivery Time: General condition within 15 days Grade | 1260Blanket | 1430Blanket | 1500Blanket | 1600Blanket |
ClassificationTemperature | ° C | 1260 | 1430 | 1500 | 1600 |
Recommend UsingTemperature | ° C | 1100 | 1250 | 1300 | 1580 |
MeltingPoint | ° C | 1760 | 1760 | 1760 | 1760 |
Fiber Diameter | μm | 3.5 | 3.5 | 3.5 | 3.1 |
Fiber Length | mm | 250 | 250 | 150 | 100 |
Shot Content(>212 μm) | % | 18 | 18 | 15 | 0.11 |
Chemical Composition | A l 2 O 3 | % | 47.1 | 35 | 40 | 72 |
Si O 2 | % | 52.3 | 49.7 | 57.8 | 28 |
Zr O 2 | % | - | 15 | - | - |
Cr 2 O 3 | % | - | - | 2.0 | - |
Bulk Density | k g / m 3 | 96; 128; 160; | 128 |
Thermal Conductivity W/(m. K) Density in 128kg/m 3 | 400 | ° C | 0.10 |
|
|
|
600 | ° C | 0.15 | 0.14 | 0.13 | 0.09 |
800 | ° C | 0.24 | 0.23 | 0.21 | 0.13 |
1000 | ° C |
| 0.29 | 0.27 | 0.19 |
Available Size | mm | Length x Width x Thickness |
7200x610x6 ; 7200x610x12.5; |
7200x610x20; 7200x610x25; |
3600x610x38; 3600x610x50; |
North Refractories Co. Ltd (NRCL) was founded by Mr Sun from 15 years ago and from the year 2007 we started our exporting business via our sales company Beijing North Refractories Co. Ltd, we focus on refractory and heat insulation materials manufacturing, serving for wide range industries where high temperatures exist. Such as steel & iron, aluminum, glass industry, ceramics, power plant, petrochemical, foundry industries and so on.
Main product list:
CERAMIC FIBER INSULATION: Ceramic fiber blankets, ceramic fiber boards, ceramic fiber modules, ceramic fiber bulk, ceramic fiber papers, ceramic fiber felt, ceramic fiber top out cone, ceramic fiber special shapes, ceramic fiber binders, ceramic fiber coatings.
ECO FIBER INSULATION MATERIALS: Soluble fiber blankets, soluble fiber board, soluble fiber paper
CALCIUM SILICATE INSULATION MATERIALS: Calcium silicate pipe section, calcium silicate 650C, calcium silicate 1000C, calcium silicate block 1100C, super calcium silicate, high density calcium silicate insulation shapes, non-wetting calcium silicate, water proof calcium silicate board, carbon fiber reinforced calcium silicate, glass fiber reinforced calcium silicate.
REFRACTORY BRICKS: High alumina refractory bricks, SiC bricks, Fused Cast Refractory Bricks.
