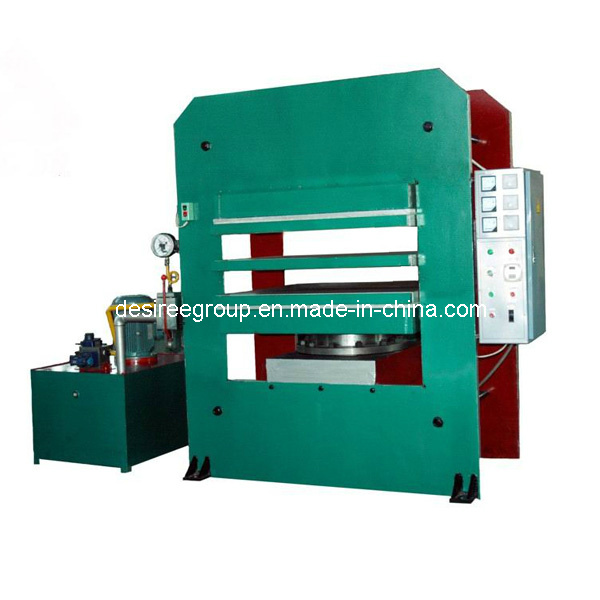

Rubber Curing Machine

Rubber Curing Machine
Price: US $ 34500-51000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: XLB-Q/D1200x1200x2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: General Rubber Machinery
Type Of General Rubber Machinery: Material Processing Machine
Type Of Tire Machinery: Rubber Regeneration Machinery
Name: Rubber Curing Machine
Total Pressure: 3150kn
Max. Pressure Of Working Oil: 16mpa
Piston Diameter: 500mm
Max. Stroke Of Piston: 700mm
Hot Platen Size: 1200X1200mm
Working Layer Quantity: 2
Structure: Frame Type

Product Description

Rubber Curing Machine

Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic.

2. Used as common hydraulic machine.


Features:
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Frame type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.

4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.

Advantages:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty.
2. Engineers available to service machinery overseas.
2. Any problem, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.
Item Description Remarks
Rubber Curing Machine Model No. XLB-Q/D1200x1200x2
Total pressure(kN) 3150
Max. working pressure of working oil(MPa) 16
Max. stroke of piston(mm) 700 Can be designed as your requirement.
Piston diameter(mm) 500
Hot platen size(mm) 1200x1200
Layer quantity 2
Hot platen clearance (mm) 350 Can be designed as your requirement.
Heating temperature( °C) 140 to 160
Motor power(kW) 7.5
Steam pressure(MPa) 0.6 to 0.8 XLB-Q1200x1200x2 heated by steam
Electrical heating power of each hot platen(kW) 24.1 XLB-D1200x1200x2 heated by electric pipe
Total weight(kg) 8000

About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.
