North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Blue, Green, etc
Series:
Rubber Tile Machine
Material:
Rubber Powder, Glue, Pigment
Type:
General Rubber Machinery
Type Of General Rubber Machinery:
Material Processing Machine
Type Of Tire Machinery:
Rubber Regeneration Machinery
Certification:
CE, ISO
Product Description
1.About our company:
Our company is a firm engaged in production enterprise, mechanism of rubber has more than 20 years of history.
Companies depend on the technical power, the strict scientific management expertise, product quality and good service, and won the majority of the customer's trust. many of the product is exported to the united states, canada, australia and india, indonesia and uzbekistan, etc.
Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949
Our main products are plate vulcanizing press, two-roll mixing mill, rubber extruder, banbury intensive kneader, bale cutter, conveyer belt vulcanizing press, tyre reclaiming machines, rubber refiner, rubber cracker, etc. we especially specialize in the design and manufacture of the nonstandard products .

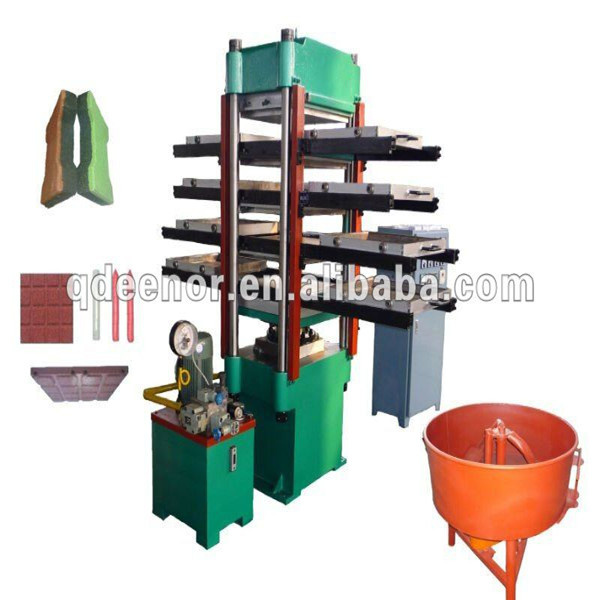

2.Describe of floor vulcanizer:
Rubber floor vulcanizer is specially producing rubber floor tile, each layer vulcanizing two sets of mould, turns configuration of sulfide, can effectively improve the production efficiency. At the same time configuration manual push-pull mould device, it is more convenient to operate.
3.Technical Parameters: (kindly check the sheet as follow)

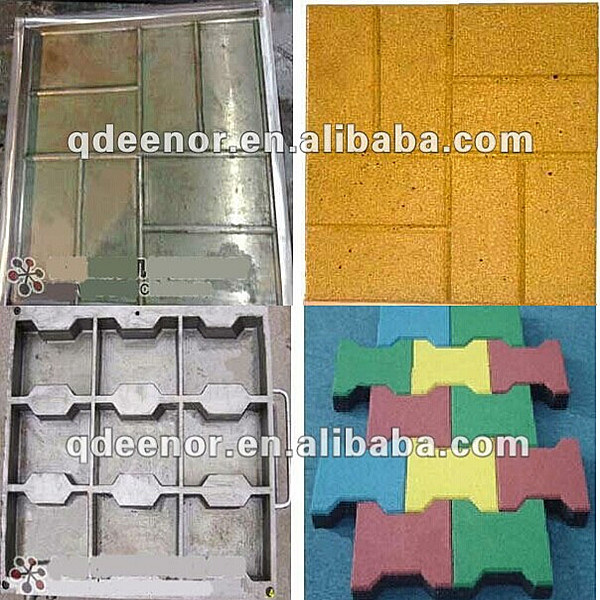

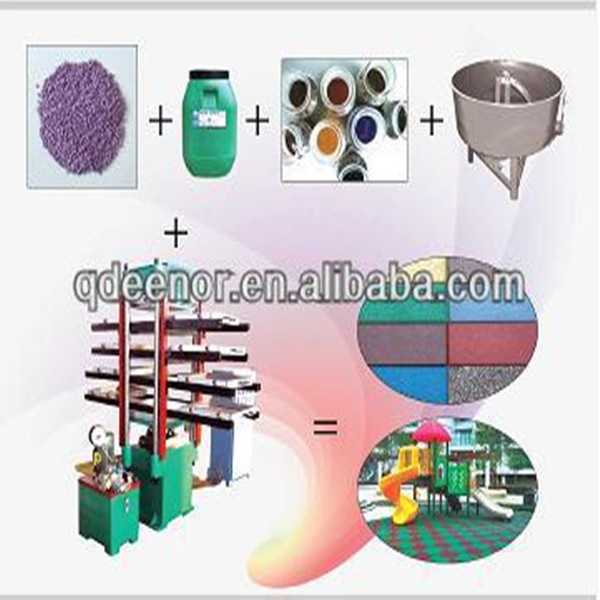

4.Pictures of tile processing line: Different types molds:
Model
XLB-D/Q
350X350X1(2)
XLB-D/Q
400X400X2
XLB-D/Q
500X500X2
XLB-D/Q
600X600X2
XLB-D/Q
750X850X2(4)
Nominal pressure(MN)
0.25
0.50
0.60/0.80
1.00
1.60
Plate size(mm)
350X350
400X400
500X500
600X600
750X850
Plate clearance(mm)
125
125
125
125
125
Working layer number
1(2)
2
2
2
2(4)
Plate unit pressure(Mpa)
1.56
3.1
3.2
2.8
2.5
Piston stroke(mm)
250
250
250
250
250(500)
Motor power(kw)
3.0
2.2
2.2
2.2
3.0
Overall dimension(mm)
L
1200
1400
1650
1410
1900
W
400
550
600
680
950
H
1300
1500
1600
1750
2000
Weight(kg)
800
1300
1500
3500
6500(7500)
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
Different types molds:
