North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:
General Rubber Machinery
Type Of General Rubber Machinery:
Material Processing Machine
Type Of Tire Machinery:
Rubber Regeneration Machinery
Name:
Rubber Vulcanizing Machine
Total Pressure:
1800t
Piston Stroke:
400mm
Plate Size:
2000X3000mm
Daylight No.:
1
Daylight:
400mm
Plate Heating:
by Steam
Structure:
Frame Type
Product Description

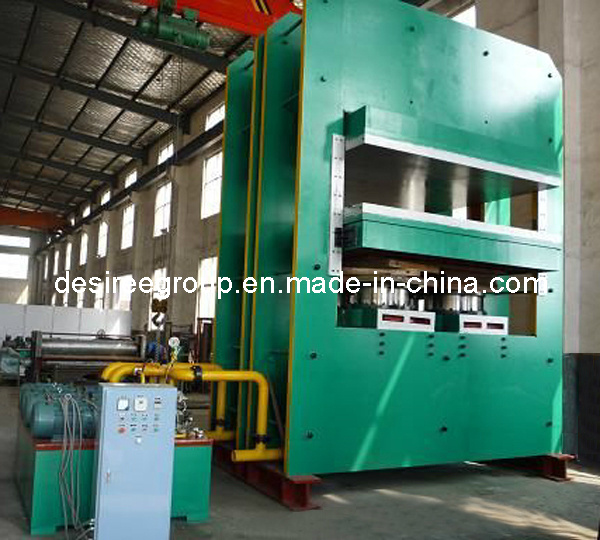

Rubber Vulcanizing Machine
Function: 1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal, rubber sheet and so on.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. Heating method for hot platen: steam heating
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area. 2. High working pressure 3. High producing efficiency 4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty. 2. Lifetime technical support.
3. Any demand ,we will give feedback within 24hours.
Company Show: Workshop Show: Certificate Show:
Any demand, please feel free to contact with me. Welcome to make a field inspection of our factory.
Rubber Vulcanizing Machine Type
XLB-Q2000× 3000× 1
XLB-Q1400× 5700× 1
XLB-DQ1300× 2000× 1
XLB-Q1200× 2500× 1
XLB-Q1500× 2500× 1
Total pressure(t)
1800
2800
560
750
1000
Plate size(mm)
2000× 3000
1400× 5700
1300× 2000
1200× 2500
1500× 2500
Plate clearance(mm)
400
400
400
400
400
Working layer number
1
1
1
1
1
Piston stroke(mm)
400
400
400
400
400
Plate pressure(MPa)
3
3.5
2.15
2.5
2.66
Main motor power(KW)
26
43.5
8
9.5
11
Overall dimension(L× W× H)(mm)
2900× 3200× 2860
2400× 5800× 3600
2000× 1860× 2500
2560× 1700× 2780
2810× 1550× 3325
Weight(kg)
66000
110000
17000
20000
24000
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.

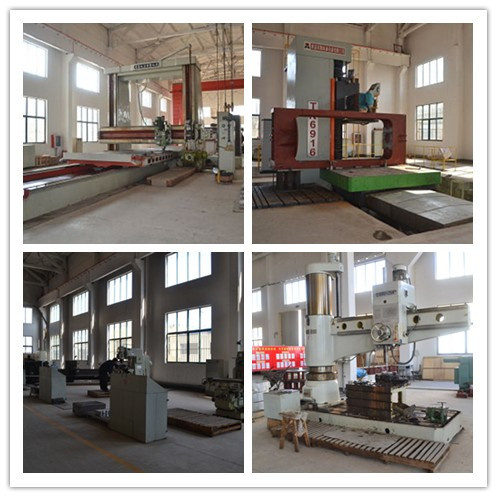

Workshop Show:
Certificate Show:
