Production Name:
Sea Balls Blow Moulding Machine
Type:
Extrusion Blow Molding Machine
Raw Material:
PET
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

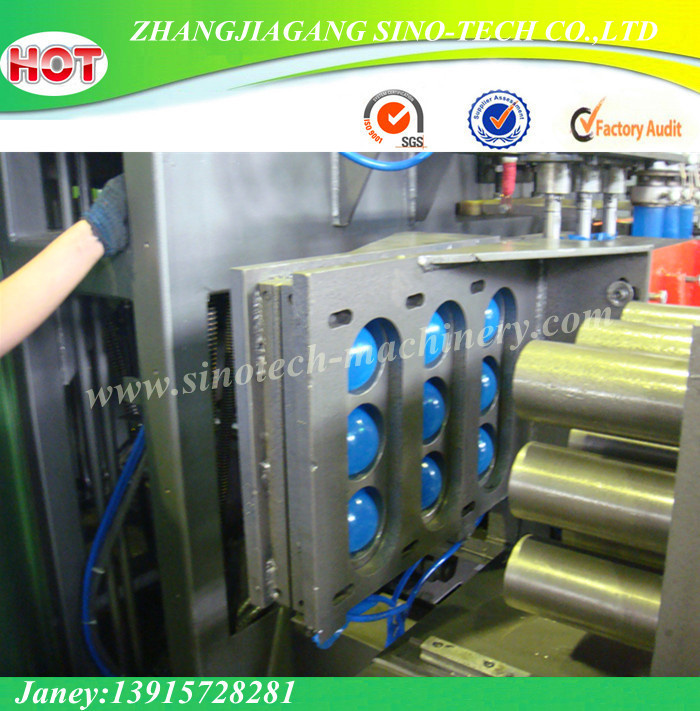

Sea Balls Blow Moulding Machine (TCY60II-2D) Item description A. Machine model: TCY60II-2D B. Capacity: 1000-2000 bottle/hour C. Suitable Ball size: 40-160mm D. Ball material: PE/PP E. Usage: For kids playing on the playground.
Technical Parameters
Specifications
TCY60II-2D series
Suitable Material
PE PP PVC PA.
Max container capacity
L
3L
Number of die heads
set
2
Output(dry Cycle)
pc/hr
1500x2
Machine Dimension L×W×H
M
3.0x2.2x2.8
Total weigh
ton
5.5
Clamping Unit
TCY60II-2D series
Clamping force
KN
40
Platen opening stroke
mm
138-368
Platen size
mm
338x450
Max mould size(W×H)
mm
400x400
Mould thickness
mm
140-210
Power
TCY60II-2D series
Max drive
KW
20.5
Total power
KW
33.9
Fan power for screw
KW
0.3
Air pressure
Mpa
0.7
Air consumption
m³/min
0.6
Average energy consumption
KW
16.5
Extruder unit
TCY60II-2D series
Screw diameter
mm
60
Screw L/D ratio
L/D
24
Plasticizing capacity
Kg/hr
60
Number of heating zone
zone
3
Extruder heating power
KW
8.8
Extruder driving power
KW
15
Die head
TCY60II-2D series
Number of heating zone
zone
3^5
Power of die heating
KW
4.6
Max die-pin diameter
mm
30
Center distance of tetra-die
mm
60--85
