Volume:
0.05-6L
Material:
Pet/PP
Max Mould Plate Dimension:
420X500mm
Max Mould Thickness:
120-230mm
Raw Material:
PET
Making Method Of Parison:
Stretch Blow
Automation:
Automatic
Computerized:
Non-Computerized
Certification:
CE
Product Description
Features

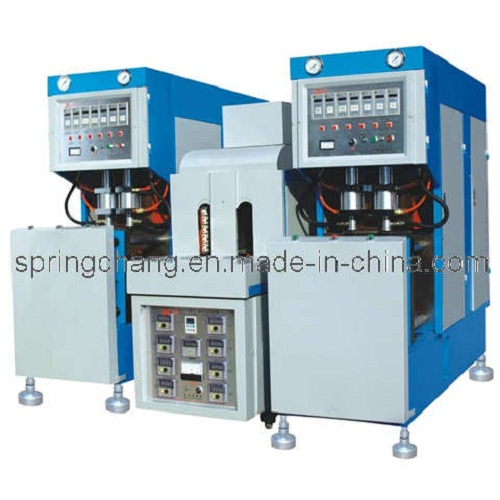

SU230 Stretch Blowing Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles, carbonated soft drink bottles, juice bottles, and medical bottles, cosmetic and bottles etc.
Infrared lamps adopted in the pre-heater ensure PET performs being heated evenly.
Mechanical-double-arm clamping system ensures mould being tightly closed under high pressure and high temperature.
Pneumatic system consists of two parts: Pneumatic acting part and bottle blowing part in order to meet different pressure requirements for both acting and blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.
Equipped with silencer and system to lubricate the mechanical parts of the machine.
Operated step-by-step and in semi-auto mode.
Wide-mouth jar and hot-fill bottles can also be made.
TPYE
ITEM
MEASUREMENT
SU-230
FINISHED PRODUCT
Material
PET/PP
Volume
L
0.05-2.5(2-cavity) 3-6(1-cavity)
Theoretical output
Pcs/h
0.05-2.5L;850 3-6L;400
Max length
mm
350
Max diameter
mm
180
MOULD PLATE
Max mould plate dimension(LxH)
mm
420×500
Max mould thickness
mm
120-230
Clamping force
KN
100
Mould opening stroke(Adjustable)
mm
200
AUXILIARY
High pressure compressor
M 3 /Mpa KW
≥0.6/3.0×1set 11
precision air filters
M 3 /Mpa
≥1.0/3.0×3pcs
MAIN MACHINE ELECTRICITY
Power
KW
12
Voltage/Frequency
V/Hz
220/380/50-60
MACHINE SIZE AND WEGHT
Blow unit dimension(L×W×H)
M
1.53×0.6×2.0
Blow unit weight
T
0.7
Pre-heater dimension(L×W×H)
m
1.80×0.50×1.16
Pre-heater weight
t
0.30
