Type:
Injection Blow Molding
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Certification:
SGS
Product Description
Servo Motor 68ton Plastic Injection Molding Machine for Cosmetic Box Making
Product Description
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.

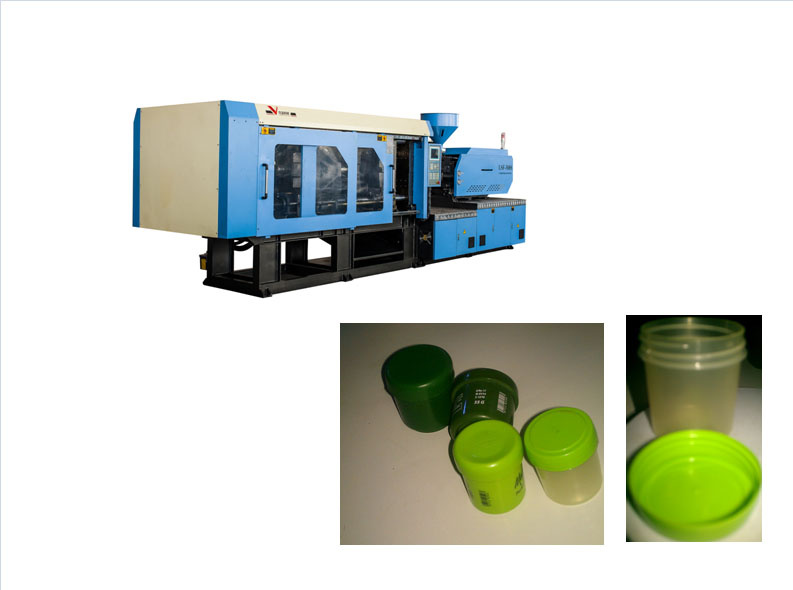

Servo Motor 68ton Plastic Injection Molding Machine for Cosmetic Box Making
Some of the important features:
Clamping system: Faster response, stable and high rigidity Injection system: Accurate and flexible, lower rejection rate Control system: Computer and simple operation,molding data memory system Power system: Energy saving, high efficient and precise Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken. Oil treasure: Filter of hydraulic oil,good for pump and valves Long working life: Imported spare parts and updated version Aftersales service: Professional & timely Delivery time:30-60 days Port of dispatch: Shanghai
TECHNICAL PARAMETER---LSF68
INJECTION UNIT
Unit
LSF-68
A
B
C
Screw Diameter
Mm
26
30
34
Screw L/D Ratio
L/D
24
21
19
Short Size
Cm3
69
92
118
Injection weight
G
62
83
107
Injection Rate
g/s
60
80
103
Plasticizing capacity
g/s
6.3
8.4
10.3
Injection Pressure
Mpa
236
177
138
Screw Speed
Rpm
0-220
CLAMPING UNIT
Clamp Force
KN
680
Space Between Tie Bars
mm
310*310
Toggle Stroke
mm
285
Max. Mold Height
mm
330
Min. Mold Height
mm
100
Ejector Stroke
mm
70
Ejector Tonnage
KN
22
Ejector Number
P
1
OTHERS
Max. pump Pressure
Mpa
16
Pump motor Power
Kw
7.5
Heater Power
Kw
5.1
Machine Dimension(L*W*H)
M
3.7*1.02*1.81
Oil Tank Capacity
L
180
Machine Weight
T
2.5
Components list
Clamping Unit
1. Platen with Material QT450-10
Made in China
2. Tie-Bar with Material 40Cr
Made in China
HB250-280
3. Machine Base Frame
Made in China
Injection Unit
1. Screw and Barrel with Material 38GrMoALA
Made in China
2. Motor
ZHONGDA
Made in China
3. Oil Cooler
Made in China
4. Oil Pump
SUMITOMO
Japan
5. All Hydraulic Valves
With Brand Yuken
6.Hydraulic Motor
Intermot
Sino-italy
7. Bearing for Hydraulic Motor
With Brand Hazhou
China
8. Selector valve
NORTHMAN
Taiwan
9. Proportional Valve
HNC
Taiwan
Controlling Unit
1. Computer Controlling System
Controller TB118-PS860 with color LCD
SINO-AUSTRA
2. Power Switch
With Brand Schneider
GERMAN
3. Limited switch
With BrandOMRON
JAPAN
4. One way auto switch(high rupture)
With Brand Schneider
GERMAN
5. PID
With Brand Omron
JAPAN
6. SSR
With Brand Schneider
GERMAN
7. Timer Relay
With Brand omron
JAPAN
8. Approach Switch
With Brand Schneider
GERMAN
9. Servo motor energy saving system
With Brand Star
Made in China
Others
1.five star motor
Intermot
Sino-italy
2. "O" Ring
With Brand NOK (Yuken of Japan)
3. Oil Sealing Ring
With Brand NOK (Yuken of Japan)
4. Anti-wear Ring
Made in Germany
5. Dust Ring
With Brand NOK(Yuken of Japan)
6. Linear Transducer
With Brand LINCC
Switzerland
7. High Press Tube
Made in China
