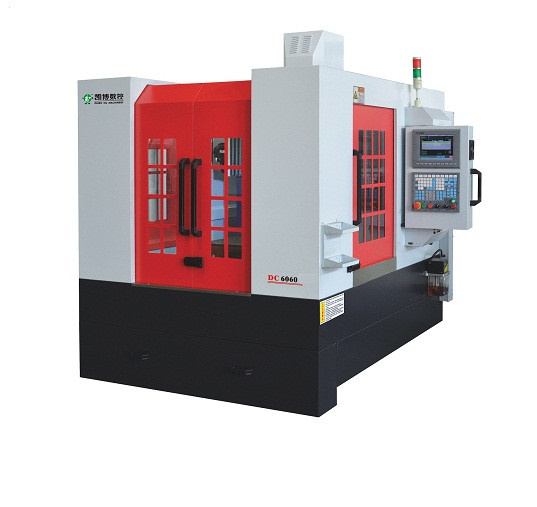

Shoe Mould Machine

Shoe Mould Machine
Price: Negotiable/Set
Trade Terms: FOB,CFR
Min Order: 1/Set
Pay Type: L/C,T/T
Contact Supplier
Ningbo Kaibo Cnc Machinery Co., Ltd
Showroom Product Company Profile
Prod Model: DC6060A

Product Description

KAIBO CNC ENGRAVING MILLING MACHINE SPECIFICATIONS
SPECIFICATION/MODELDC6060ADC6060(BT30/18000rpm)DC6060(BT30/24000rpm)
                         Positioning accuracy 0.01/300mm0.01/300mm0.01/300mm
                                    Repeat positioning accuracy±0.005mm±0.005mm±0.005mm
                                             X,Y,Z Axis Travel600×600×260mm600×600×260mm600×600×260mm
                                         Table Size615×600mm615×600mm615×600mm
Z                                      Z to space height530mm530mm530mm
                                    Max. Loading    300kg300kg300kg
     Engraving processing                      Max. power consumption380v/220v/12kw380v/220v/12kw380v/220v/12kw
                                              Spindle Motor Power 5.5kw5kw4.5kw
X/Y/Z                             X/Y/Z Axis Motor  850w/850w/850w850w/850w/850w850w/850w/850w
                                              Spindle Speed24000rpm18000rpm24000rpm
                               Max. Engraving speed8m/min8m/min8m/min
                                              Tool Holder Er25 (¢3.17-¢16)Er25 (¢3.17-¢16)Er25 (¢3.17-¢16)
                                    Servo MotorAC servo motorAC servo motorAC servo motor
                                  Weight4200kg4200kg4200kg
                   Dimensions2300×1840×2240mm2300×1840×2240mm2300×1840×2240mm
                                     CNC Controller System Syntec 21MA
                                          Standard Accessories     HG30-30   /     HG30-30   /     HG30-30   /
Linear Guides  HG30-30 - Hiwin/Taiwan Linear Guides  HG30-30 - Hiwin/Taiwan Linear Guides  HG30-30 - Hiwin/Taiwan
 2505 /   2505 /   2505 /
Ball Screw 2505 - Hiwin/Taiwan Ball Screw 2505 - Hiwin/Taiwan Ball Screw 2505 - Hiwin/Taiwan
 850w / 850w / 850w /
Servo Motor 850w - YASKAWA/JapanServo Motor 850w - YASKAWA/JapanServo Motor 850w - YASKAWA/Japan
   850w  /   850w  /   850w  /
Servo Motor Drives 850w - YASKAWA/JapanServo Motor Drives 850w - YASKAWA/JapanServo Motor Drives 850w - YASKAWA/Japan
 5.5kw / BT30/5kw / BT30 4.5kw /
High-speed Spindle 4kw - Bohua or Xingchen / ChinaHigh-speed Spindle 4kw - Bohua  / ChinaHigh-speed Spindle 4kw - Bohua / China
 5.5kw /  5.5kw /  5.5kw /
 Spindle Inverter 5.5kw - Taian/Taiwan Spindle Inverter 5.5kw - Taian/Taiwan Spindle Inverter 5.5kw - Taian/Taiwan
 EHDW-BA5S-1 /  EHDW-BA5S-1 /  EHDW-BA5S-1 /
Electronic Hand-Wheel EHDW-BA5S-1 - Yuanzhan/TaiwanElectronic Hand-Wheel EHDW-BA5S-1 - Yuanzhan/TaiwanElectronic Hand-Wheel EHDW-BA5S-1 - Yuanzhan/Taiwan
 IBC/  NSK/      IBC/  NSK/      IBC/  NSK/
Spindle Bearing - SKF/GermanySpindle Bearing - SKF/GermanySpindle Bearing - SKF/Germany
Electronic System - Schneider/GermanyElectronic System - Schneider/GermanyElectronic System - Schneider/Germany
 Water Gun Water Gun Water Gun
 Oil Coolant Chiller  Oil Coolant Chiller Oil Coolant Chiller

APPLICATION
It is a special-purpose machine for shoe mold.

FEATURES
1.  Special for engraving shoe mold, increase the Spinde and Z-axis motor power, use linear guide.
2.  Equipped with proffesional fixture, and the fixture application for a design patent by our manufacture.
3.  We development the controller with Taiwan Syntec company, make the shoe mold processing more efficiency.
4.  Using small tool at high speed, saving time and cost.
-----History

• 1.1994, Ninghai County Feihe Machiner Engraving Factory was founded.

• 2.2001, We Started to manufacture CNC Engraving Milling Machine.

• 3.2003 Kaibo Machinery Co; Ltd was found.

• 4.2004 Kaibo Sheet metal factory was found.

• 5.2005 Kaibo was establish CNC MACHINE TOOL research center.

• 6.2006 Kaibo was establish CNC machinery training center.

• 7.2009. Nanjing Yongbo CNC Machinery Co; Ltd was establish.

• 8.2009, Kaibo machine was designated as the national standard by GB.

• 9.2009, Kaibo start product gantry milling machine and 5-axis engraving milling

Machine.

-----Company Information

With over 20 years of machine tools manufacturing experience, in particular CNC

Engraving milling machines.

Kaibo with independent research and development, design, production, has been

Named China famous brand.

In China, only CNC Engraving milling machines share more than 30% market.

Kaibo developed the CNC engraving milling machine corporate standards, Was

Designated as the national standard setter by GB in 2009.
-----History

• 1.1994, Ninghai County Feihe Machiner Engraving Factory was founded.

• 2.2001, We Started to manufacture CNC Engraving Milling Machine.

• 3.2003 Kaibo Machinery Co; Ltd was found.

• 4.2004 Kaibo Sheet metal factory was found.

• 5.2005 Kaibo was establish CNC MACHINE TOOL research center.

• 6.2006 Kaibo was establish CNC machinery training center.

• 7.2009. Nanjing Yongbo CNC Machinery Co; Ltd was establish.

• 8.2009, Kaibo machine was designated as the national standard by GB.

• 9.2009, Kaibo start product gantry milling machine and 5-axis engraving milling

Machine.

-----Company Information

With over 20 years of machine tools manufacturing experience, in particular CNC

Engraving milling machines.

Kaibo with independent research and development, design, production, has been

Named China famous brand.

In China, only CNC Engraving milling machines share more than 30% market.

Kaibo developed the CNC engraving milling machine corporate standards, Was

Designated as the national standard setter by GB in 2009.
