Kind:
Single Layer Stretch Film Making Machine
Model:
Df-55
Screw Dia.:
55mm
Max. Film Width:
500mm
Film Thickness:
0.008-0.1mm
Die Head Width:
650mm
Automatic Loading:
Optional
Output:
30-40kg/Hr
Speed:
10-50m/Min
Brand:
Jingdianruihua
Type:
PE Film Blowing Machine
Raw Material:
LLDPE
Automation:
Automatic
Computerized:
Computerized
Certification:
SGS
Maximum Folding Width Of Film:
500mm
Machine Weight:
2000kgs
Product Description

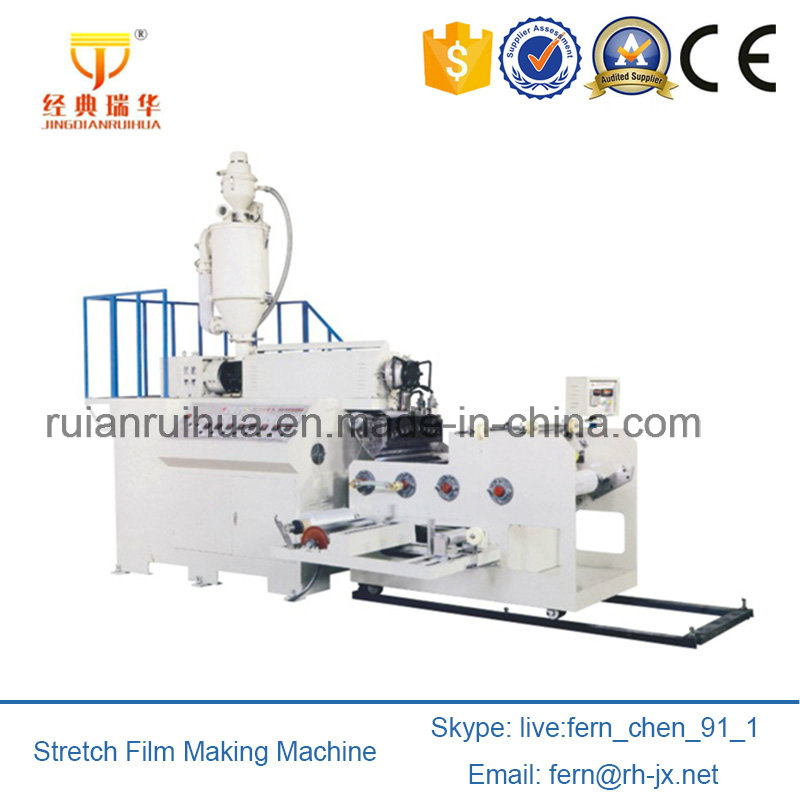

Single Layer Stretch Film Making Machine
Main specifications: Raw material:LLDPE Mould effective width:650mm Production speed:40 m/min Product width:500mm Production:30kg/h The switchboard capacity:50kw main motor power:11kw The extruder diameter: Φ55mm Cooling roller: Φ315mm×650mm Traction motor: 3kw Coiling diameter: Φ300mm Traction roller diameter: Φ110mm×650mm
Project/specification
500mm single
Screw diameter
55mm
Length-diameter ratio
28:1
The die head width
650mm
Finished product width
500mm
Finished product thickness
0.008-0.05mm
Membrane layer structure
A
The maximum yield
30kg/h
Mechanical speed
10-100m/min
The total power
50kw
Overall Dimensions (L*W*H)
5m*1.5 m*2.5m
Weight(T)
3.2T
More details, pls contact us freely.
