Shell Material:
Metal
Data Out-Put:
RS232 Printer
Hardness Scale:
Hv, HRC, Hrb, Hl, Hbw, Hra, Hs
Type:
Leeb Hardness Tester
Measuring Range:
HV
Application:
Ceramics and Glass
Standard:
GB/T
Product Description

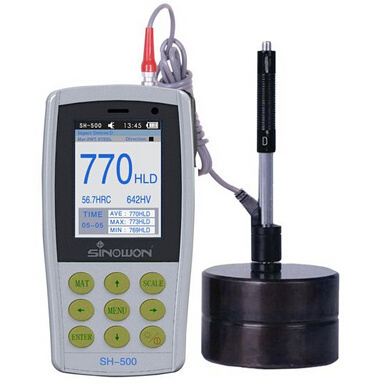

Sinowon SH-500 Portable Leeb Hardness Tester
Application: Die cavity of molds Bearings and other parts Failure analysis of pressure vessel, steam generator and other equipment Heavy work piece The installed machinery and permanently assembled parts Testing surface of a small hollow space Material identification in the warehouse of metallic materials Rapid testing in large range and multi-measuring areas for large-scale work piece
SH-500 Leeb hardness tester features: 1, Metal shell, nice appearance design 2, Available to save 2000 groups test results 3, Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously. 4, 4" LCD to display hardness result, conversion results, Max, Min, Mean value. 5, Support blue tooth printer, with RS232 to connect computer for software running 6, Can test all kinds of metal which more than 5kg 7, Indicating error ± 5HLD, conform standard ASTM A956. 8, Support 7 types of impact devices
2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple
5mm,expect with impact device G:10mm,C:1mm
Workpiece min. case hardened depth
0.08mm except C impact device 0.2mm and impact device 1.2mm
Dimension
170mm×80mm×26mm
Power Supply
AA/4.2V
Operating Temperature
0 deg to 40 deg
Weight
500g (Excluding impact device and printer)
Standard Delivery:
Standard Delivery
Code#
RS-232 Data cable
852-810
SINOWON certificate
SH-100
Charger
852-850
Accessories Box
852-900
Instrument Manual
SH-100
Instrument Main Body
852-110
Impact device type D
852-410
Hardness Block(750-830)HLD
852-630
Cleaning brush
852-860
Optional Accessories:
Optional Accessories
Code#
printer paper
852-840
Software Data Pro
852-380
Mini-printer
852-830
Hardness Block(460-540)HLD
852-640
Optional Impact device type
DL, DC, D+15, C, E, G
Optional Support Ring
852-510
