Stator I.D.:
70-140mm
Stator O.D.:
No More Than 200mm
Stack Height Of Stator:
No More Than 160mm
Width Of Edge Folded:
3-7mm
Feeding Perimeter:
No Less Than 15mm
Material's Thickness:
No More Than 0.35
Product Description

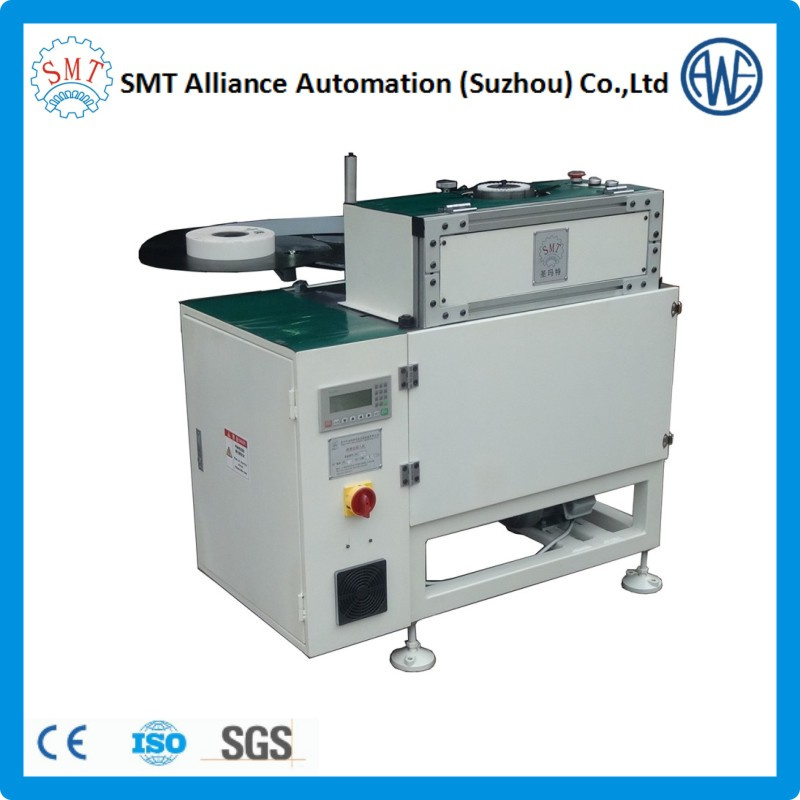

SC160 Slot Insulation Machine Paper Inserting Machine
Product Features
1.A special design specific to different design or different sizes of slot; 2.Can finish insulation paper insertion at a time;
3.Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various to various or different-sized slot;
4.Use servo paper inserting machine to feed paper and settle breadth; 5.Interpersonal interface sets required specific parameter; 6.Forming mold is adjustable to different sizes of slot automatically; 7.Characterized by simple operation,low noise, fast speed and high automaticity.
Technical Parameter:
Model
SC160
Stator I.D.
70-140mm
Stator O.D.
≤200mm
Stack Height of Stator
≤160mm
Width of Edge Folded
3-7mm
Feeding Perimeter
≥15mm
Material's thickness
≤0.35mm
Power Supply
380V/50/60Hz 0.75Kw
Air Pressure
≥0.6MPa
Machine dimension
(L)1150*(W)1000*(H)1600mm
Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Suzhou Smart Motor Equipment Manufacturing Co., Ltd. is specialized in the R&D, manufacturing and sales of induction motor stator machinery. Our machine are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor , coil motor, three-phase motor, fan motor and compressor motor, etc.
Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, apart from the big market share in China, we export our machines to the worldwide countries such as America, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc. and our machines share the great reputation among customers for its durable, reliable performance, reasonable price and good after service.
Our company stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
