Moud Base:
P20
Core And Cavity:
S136
Hardness:
45-52HRC
Design:
Ug,CAD
Material:
Steel
Application:
Home Use
Product Description
Description
Brand Name
Xing Xi Te-Mould
Application
All kinds of PP/PET preform mould,cap mould, food bottles, shampoo and cosmetics bottles blow mould, high-temperature blowing moulds, ordinary preform bottle, fruit juice bottles, water bottles etc
Working Conditions
-10-120 centigrade
Product Material
PET,PE,PP,PS,PVC, etc
Mould Material
P20,H13,3Cr17, S136,2316,2738 etc
Hot Treatment hardness
HRC48-52 degrees,mirror surface electroplating
Operating Life
500000shots,Provide accessories for free in the first year and technical advices all life time long
Packing Details
Packed in wooden cases, or package design according to the requirement of customers

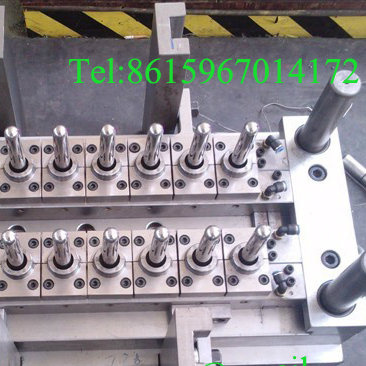

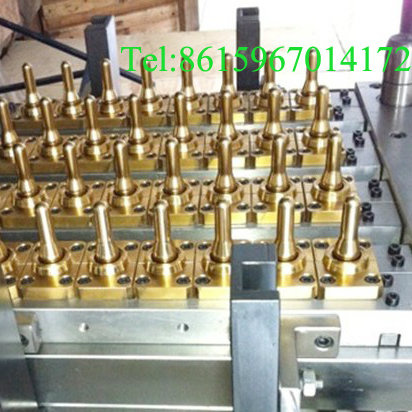

1.About design Advanced structure is designed to improve rate of finished products Two-step dual taper locating technology; each cavity self locked independently; off-center adjustment system make the thickness error of perform less then0.05mm. Bottleneck is adopted International Screw thread standard, No cutting of gate is employed to reduce the labor intensity
2. Material of steel cavity and core with imported 1.2316 stainless steel with fine polishing, high hardness and anticorrosion to get mold's high precision and good quality.
3. About gate pin-valve gate ,pneumatic drive the nozzle pin simultaneous high speed open and close action. which can effectively control the injection hole open and close actions on each cavity. reliable seal function, smooth moving, low thermal expansion rate , long using life and also saves electric energy.
4. About hot runner hot runner system is designed and made by ourselves, it can achieve ideal and prompt heating effect for preform production ,cavity with lower injection pressure to reduce wear and tear of mould parts.
5. heat system with double heating system,it has separate temperature control mode ,the heat bar are used to heat the mould mainfold plate, small heaters supply the heating temperature for cavity nozzle continuously.
6.cooling system each parts including core ,cavity and valve gate has independently cooling system.
7.heat treatment mechanical treatment cavity and core to prolong service life ,nitrogen treatment with neck screw.with fitly operation , guarantee Long using life over 2.0 million times of injection cycle
8.special satisfied service each mould undergoes strict mould test before delivery.we can provide an experienced team for installation and test as per client's request Standard inter-changeable mould components
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.
Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.
Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.
We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
