Group Valve:
Hoerbiger/ Agro/Bosch Rexroth
Back Gauge:
Ge Type(380mm/S)/GS Type(600mm/S)
Axis(Option):
Y1,Y2,X,V,W,R,Z1,Z2,X1,R1
Control System:
Cybelec/Esa/Delem
Grating Ruler:
Atek(Turkey)/Rsf(Austria)
Bracket:
Manual Adjustment/Move by Linear Guide
Oil Pump:
Imported / Domestic
Mould Fast Clamp:
Compressive Bar Type Fast Clip Ormanual Middle Pl
Machine:
Chinese Standard or European Standard
Oil Cylinder:
Imported / Domestic
Process Usage:
Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Performance Classification:
High-End CNC Machine Tools
Processing Precision:
±0.01
Product Description
1.The heavy duty rack which is novel and attractivewith the largest structure rigidity and accuracy 2.Large size of safety barrier around the machine,they provide adequate work space and are equipped with transparent organic glass. 3.The large size throat can process larger work pieces. 4.The various forms of tool clamping mechanism can be configured according to different requirements. 5.High quality bending mold adopts the overall heat treatment,high precision processing standards make the mold using comfortable. 6.All kinds of front support are applicable to all production needs.
Model
Nominal Pressure (kn)
Length of table (mm)
Distance Between Housing (mm)
Throat Depth (mm)
Stroke (mm)
Open High (mm)
Dimensions (L x W x H) (mm)
50/1600
500
1600
1200
250
160
440
2100x1250x2200
70/2500
700
2500
2000
320
160
460
3000x1350x2250
100/2500
1000
2500
2000
400
200
500
3000x1450x2400
100/3100
1000
3100
2600
400
200
500
3600x1450x2450
100/4000
1000
4000
3200
400
200
500
4500x1500x2550
160/3100
1600
3100
2600
400
200
500
3600x1650x2700
160/4000
1600
4000
3200
400
200
500
4500x1700x2850
200/3100
2000
3100
2600
400
250
550
3600x1750x2800
200/4000
2000
4000
3200
400
250
550
4500x1750x3050
250/3100
2500
3100
2600
400
250
550
3600x1750x2850
250/4000
2500
4000
3200
400
250
550
4500x1750x3150
320/3100
3200
3100
2600
400
300
600
3700x1850x3000
320/4000
3200
4000
3200
400
300
600
4500x1850x3350
400/4000
4000
4000
3200
500
300
600
4500x2100x3200
400/6000
4000
6000
4800
500
300
600
6500x2250x4200
You can select what you want according to your needs Machine: Chinese standard European standard
Oil cylinder: Imported Domestic
Group valve(import from German): HOERBIGER AGRO BOSCH REXROTH
Mould fast clamp:Compressive bar type fast clip Manual middle plate
Back gauge:GE type(380mm/s) GS type(600mm/s)

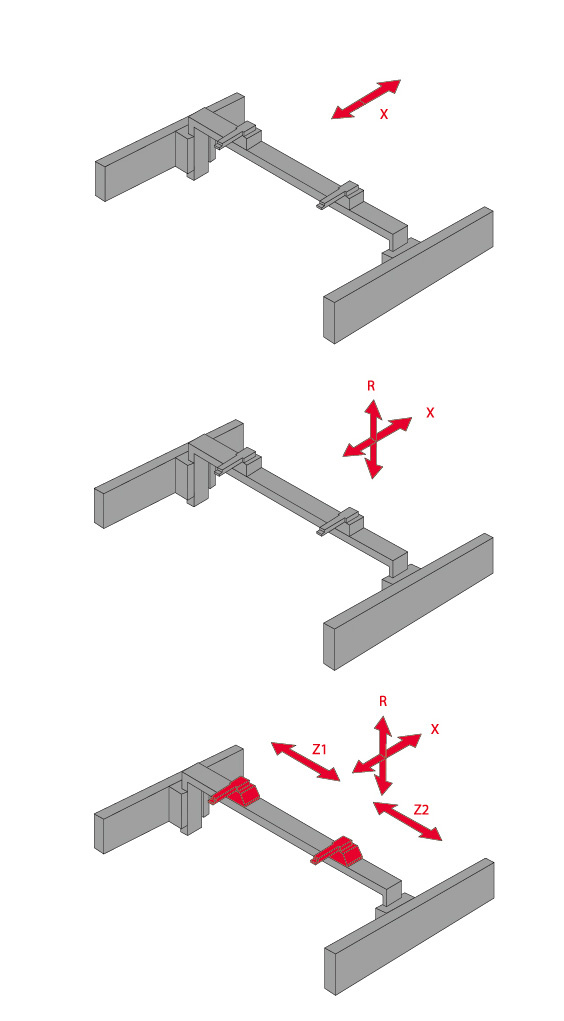

Axis(option):Y1,Y2,X,V,W,R,Z1,Z2,X1,R1
Control system:CYBELEC(CT8/CT12/880S) ESA(530/540/550) DELEM(52S/58T/66T)
Grating ruler:ATEK(Turkey) RSF(Austria)
Oil pump:Imported Domestic
Bracket:Manual adjustment Move by linear guide

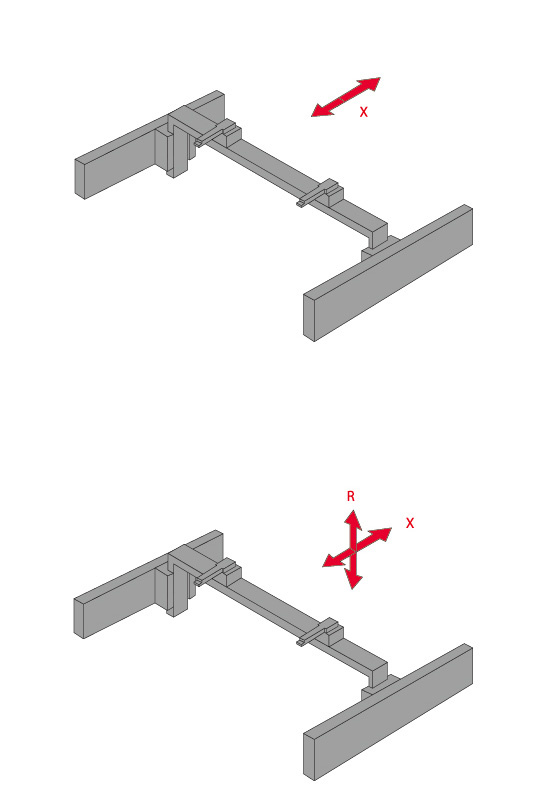

GE type backgauge
GS type backgauge
