Function Of Machine:
Automatic Stop When Raw Material Broken
Control:
by PLC and Electric
Embossing:
Steel to Steel
Choose Of Machine:
Can Design Machine for Customer
Embossing Design:
DOT-by-DOT Type Embossing Unit
Function One:
Perforated Unit
Function Two:
Pneumatic Jack to Load The Raw Material
Function Three:
Automatic Load and Change The Core
Embossing Unit:
Steel to Wool
Embossing Device:
Can Add Two Sets Embossing Units
Sheet Former Type:
Cylinder Mould
Paper Thickness:
Thin Paper
Certification:
CE
Condition:
New
Type:
Toilet Paper Machine
Product Description

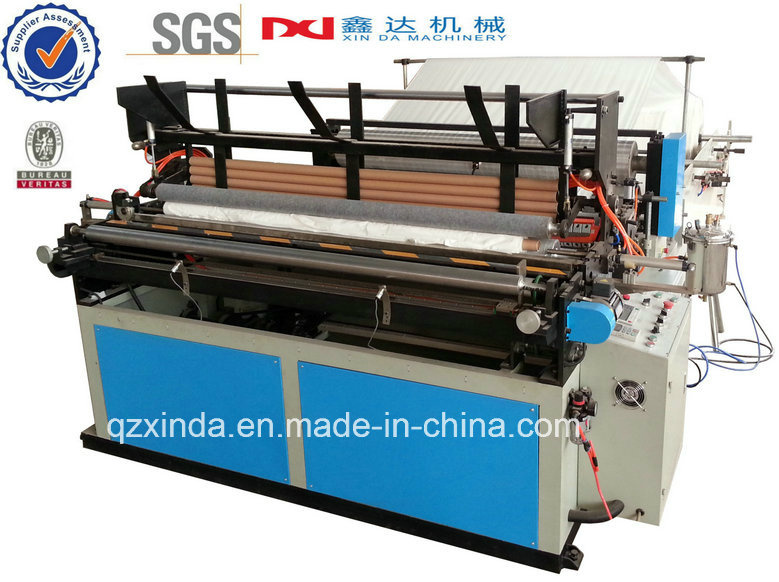

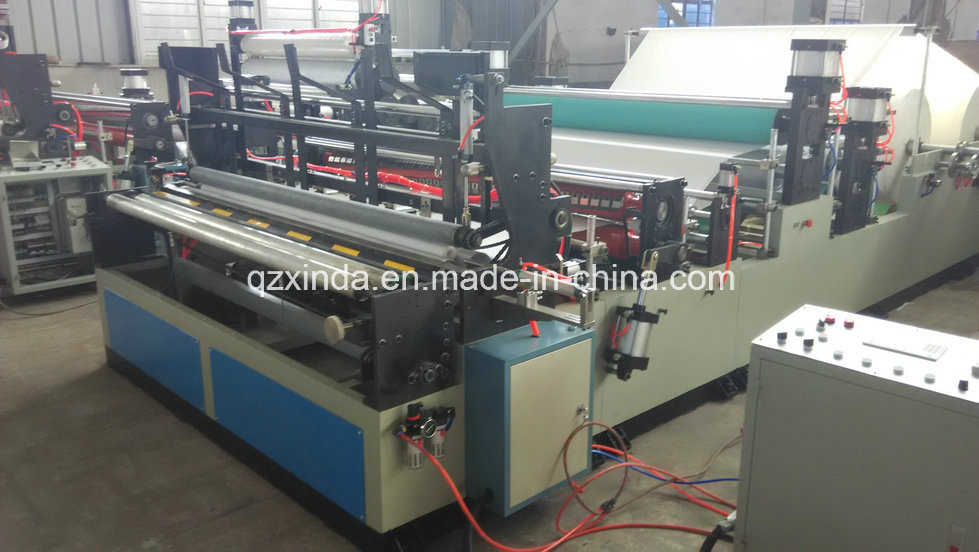

Toilet tissue paper making machine
Description of the equipment: CIL-SP-B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m² . The highest production speed is 120-160m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.2m 1.75m 1.95m 2.15m 2.35m 2.55m in width. There are two types of this model: One is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.
Features: 1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high. 2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically. 3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose. 4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes. 5. When raw material broken, the machine will stop automatically. 6. Each raw material unreel separately, equip with tension control. 7. Easy to adjust in order to suitable different paper core. 8. There is tail after the finished product sealed with glue, easy to use. 9. There is pneumatic jack to load the raw material on machine
Model
1575B
Width of raw material
1750
Dia. of finished product
¢60-150mm(the tension is adjustable)
Dia. of finished paper core
¢20-50
Dia.of raw material
1200mm(can accept customers' requirement)
Dia of core of raw material
¢76.2mm
Perforation distance
4 knives 100-150mm (other specifications, please point )
Reeling speed
150-200m/min
Parameter setting
Touch screen man-computer interface operation system
PLC
PLC
Raw material holder
2 layers(3layer, please order)
Pneumatic system
Pressure 5kg/cm2pa(prepared by customers)
Power
5.5-13kw
Overall Dimension (LXWXH)
6100X2650X1800-6100X4050X1800mm
Weight
3.5-7T
Embossment
Single embossment, two side embossment and steel to steel embossing(depend on selection)
Embossment bottom roller
Felt roller, wool roller and rubber roller (depend on selection)
