North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Metal:
Color: as Required
Type:
Horizontal Metal Drawing Machine
Usage:
Rope Wire
Product Description

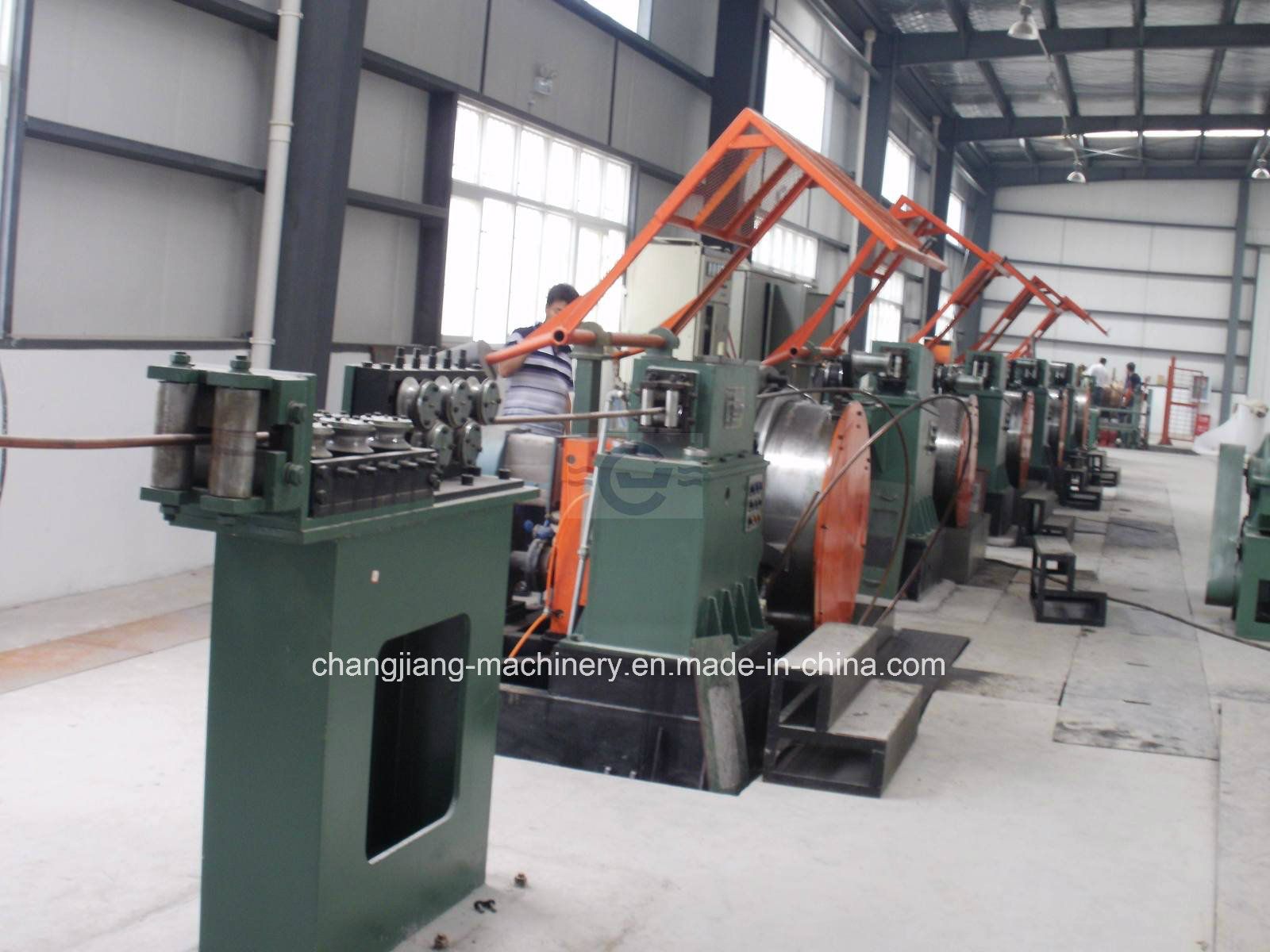

Application: The machine is used for drawing the copper alloy contact wire which used in the electrified railway, drawing the Φ20~Φ22mm rod to Φ10.8~Φ14.4mm contact wire.
Specifications
Type
Inlet wire dia.
Outlet wire dia.
Section elongation
Max.drawing speed
Power of motor
Transmission ratio of reducer
Pay-off bobbin size
Take-up bobbin size
LFD-1200/5
Φ20~Φ30mm
10.8~14.4mm
20~30%
60m/min
90kw×5
110~200
2000
2000
LFD-1000/4
Φ20mm
10.8~14.4mm
20~30%
60m/min
75kw×4
80~140
2000
2000
Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd. is a subsidiary of Jinggong Holding Group with registered capital of 40 million yuan and total investment 150 million yuan. With continuous development and extensive experience, it becomes a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China.
Our factory is located at Changjiang Jinggong Industry Park, Lu' An Economic Development Zone. The modern plant covers an area of 48, 000 square meters, equipped with large scale processing machine and a complete range of test equipment. Our company is a member of China Electrical Equipment Industrial Association and Shanghai Wire and Cable Industry Association. We have established the Quality Management System (QMS) with ISO9000 standard and achieved SGS certification of golden supplier on Made-in-China. Three main series, over 40 kinds of products have acquired CE marking for Europe market.
Our feature products include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying-up machine, planetary core laying-up machine, armoring machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, trolley wire drawing machine, extruder and relevant auxiliary equipment.
Technology To Further Our ' People First' Philosophy. By offering the customers full technical support, and services including commissioning, training of personnel, one year warranty and continuous spare part supply, we always aim to provide our global customers top quality products and service.
