Tzjd-1390 Nonmetal Laser Engraving Machine

Tzjd-1390 Nonmetal Laser Engraving Machine
Price: US $ 3333-5555/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: TZJD-1390
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: High Power
Drive Type: Stepper Drive
Engraving Machine Type: Laser Engraving Machine
Control: CNC
Current: AC
Laser Type: CO2
Usage: Woodworking
Certification: SGS, CE, ISO 9001

Product Description

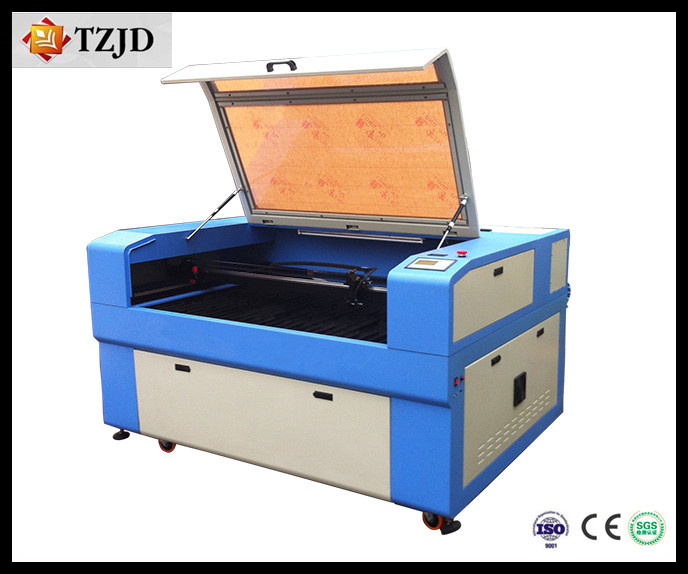

TZJD-1390 Nonmetal Laser Engraving machine for Plywood

1. Product Features:
1) Continuous & rapid curve cutting function; Selecting shortest path function.
2) Adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type,
And the life time of the laser tube can be over 10000 hours.
3) The mechanical structure is strong and stable, making the machine to run at high precision.
4) The electrical ability is stable, the engraving speed is high, and the precision is high.
5) Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
6) LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
7) USB Interface, with mass storage device; Improve working-speed & working efficiency.
8) Taiwan HIWIN linear guide rail & high-speed stepper motor drivers, the engraving/cutting edges were all smoothly enough.

2. Applicable industry:
Label processing, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry, Packing industry, etc.

3. Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, Ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, etc.

4. Technical parameters:
Model

TZJD-1390

Working area

1300mm*900mm

Laser power

60w/80w/100w/130w/150w,

Laser type

CO2 Sealed laser tube , 10.6μm, water-cooled

Cooling type

Water-cooling/Water chiller

Engraving speed

0-60000mm/min

Cutting speed

0-50000mm/min

Total power

2KW/H

Drive motors

Stepper/Servo(option)

Laser output control

0-100% set by software

Min. engraving size

Chinese: 2.0mm*2.0mm,  English letter:  1.0mm*1.0mm

Highest scanning precision

4000DPI

Locating accuracy

≤+0.01mm

Controlling software

DSP control system

Operating software

LaserCut

Graphic format supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

Color separation

Yes

Drive system

High-precision 3-phase stepper motor

Auxiliary equipments

Exhaust fan and air exhaust pipe,
red-dot position system,
focus lens & reflection mirrors,
auto-focus device,
up & down device.

Power supply

Ac110v/AC220V±10%, 50HZ/60HZ

Working environment

Temperature:0-45, Humidity 5-95%(No condensate water)

Working table

Honeycomb table/Knife bar

Interface

PCI USB

Machine available

rotary device, etc.


5. Packages: Solid seaworthy wood box package with steel belt.

6. Guarantee and After-sales service:
1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

7. Traning to use:
1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machinemetal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

9. FAQ:
1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

2) How about the payment terms?
T/T, West Union, L/C

3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

10. Contact information:
Mobile: +86-18615627569

11. Machine accessories:
 Machine ModelTZJD-1390
NumberName Quantitythe area of placement
1air pump1the inside of mainframe-box
2water pump1the inside of mainframe-box,for low power laser tube
industrial chiller/the inside of mainframe-box,for high power laser tube
3wind pipe1the inside of mainframe-box
4control line1the inside of mainframe-box
5specification1CD in the pocket
6software1
7Controller Card1the inside of file pocket
8softdog1the inside of file pocket
9toolbox1the inside of mainframe-box
10power wire1the inside of toolbox
11cotton stick1the inside of toolbox
12focaling stick1the inside of toolbox
13lozengel allen  wrench 1the inside of toolbox
14spanner to load and unload lens1the inside of toolbox
15nut of loading card/the inside of toolbox
16fixed binding wire  the inside of toolbox
optional accessorieslimit switch the inside of toolbox
opto-electrical switch the inside of toolbox
nut the inside of toolbox
blank panel the inside of toolbox
rotary device the inside of mainframe-box
lens the inside of toolbox
rotary device the inside of mainframe-box
