Machine Name:
UPVC Pipe Production Machine
Machine Color:
Customized
Motor Brand:
Customized
Type:
Pipe Extruder
Plastic Processed:
PVC
Screw:
Twin-Screw
Automation:
Automatic
Computerized:
Computerized
Product Description

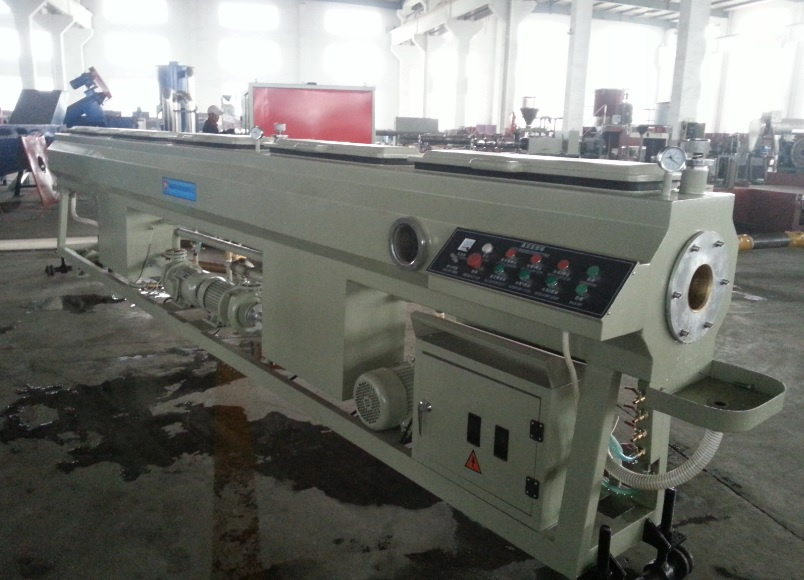

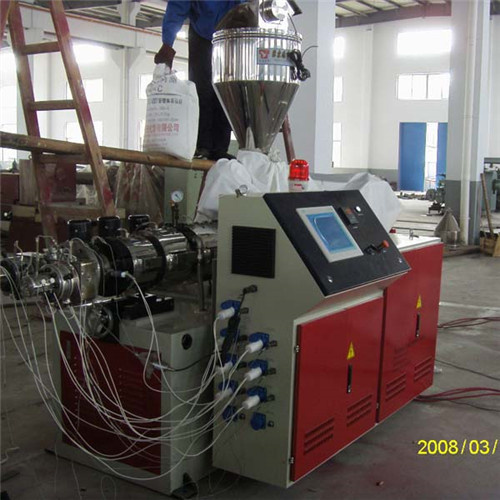

UPVC Pipe Production Machine
SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.
This kind of plastic conical double screw extruder has widely use, it is specialized for all kinds of plastic extrusion.
Item
SJSZ-45
SJSZ-51
SJSZ-65
SJSZ-80
SJSZ92
Diameter of screw(mm)
45/100
51/105
65/132
80/156
92/188
Number of screw(mm)
2
2
2
2
2
Direction of screws
Outwards contra-rotating
Screw rotation speed(rpm)
1-37
1-32
1-34.7
1-36.9
1-32.9
Effective length of screw(mm)
985
1070
1440
1800
2500
Power of main engine(kw)
15
22
37
55
90
Barrel heating power(kw)
12
18
24
36
60
Production capacity(kg/h)
95
80-120
160-250
300-360
500-600
Center height(mm)
1000
1000
1000
1000
1200
Net weight(kg)
2800
3200
4000
5000
10000
Dimensions(mm)(L×W×H)
3620×1050×2157
3000×1050×2200
4235×1520×2450
4750×1550
