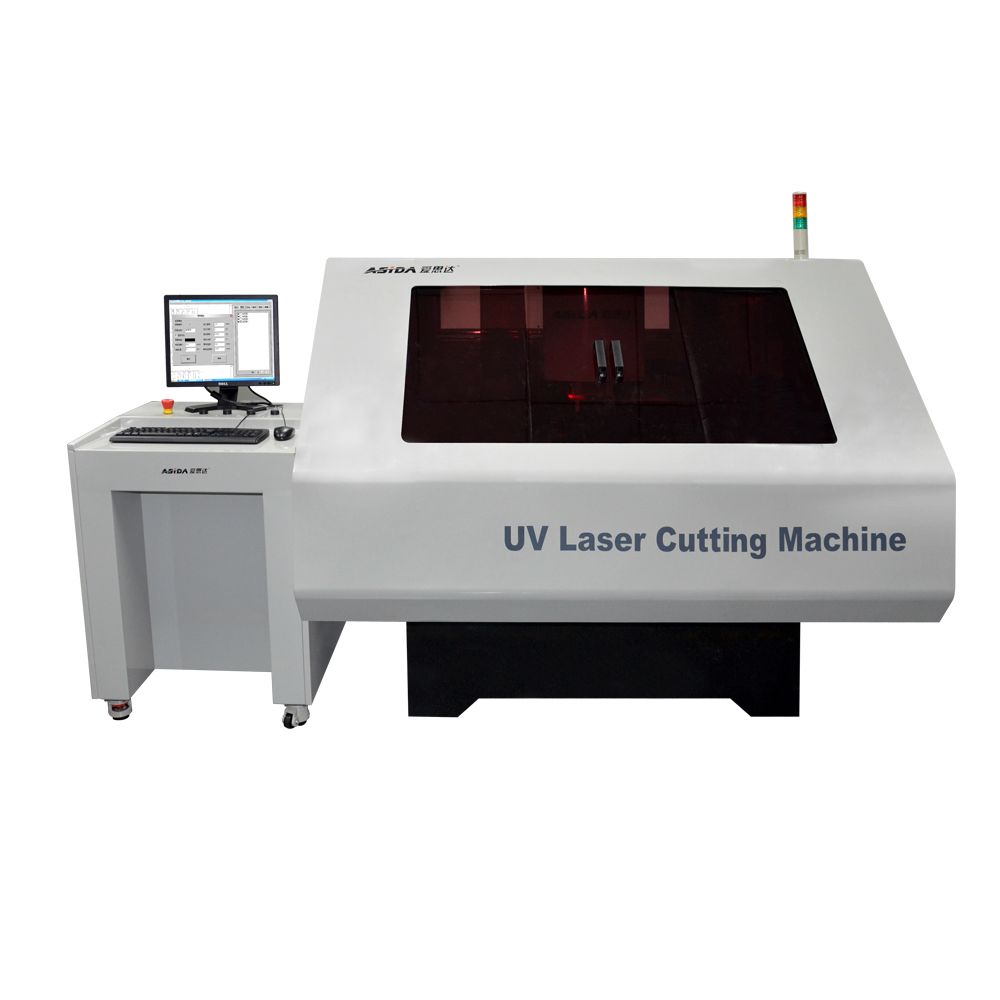

ASIDA-JG15 UV Laser Engraving Cutting Machine
1. Usage
Precisive cutting of FPC and organic membrane covering board without molds or the protection plate. High-energy laser source and precise control of laser beams can improve the processing speed and the accuracy of processing results.
2. Characteristic
2.1. Independent intellectual property rights of the control software, Humanized interface, complete functions and simple operation.
2.2. Processing any graphic, cutting different thickness and different materials, stratified processing and complete synchronously
2.3. Adopt high-performance ultraviolet light laser with short wave length, high beam quality and higher peak power properties. Because ultraviolet light is through decomposition, vaporization instead of melting to cutting the materials, so almost no burrs after processing, small thermal effect, no stratification, precise cutting effects, smooth, steep sidewall.
2.4. Fixed sample by using Vacuum mode, without matrix protection plate, convenient and improving the processing efficiency.
2.5. Used for a variety of substrate materials cutting, such as: Silicon, ceramics, glass, etc.
2.6. Automatic correction, automatic positioning and multi board cutting function. Automatic board thickness measurement and compensation. Full stroke motor compensation function. Improved cutting accuracy, reduced horizontal vibration. Improved depth cutting accuracy. Improved efficiency in cutting complex patterns.
Item | Specification |
MODEL | JG15 |
Laser Source | 355nm All-solid-state UV laser cutting device,wavelength 355nm |
Laser Power | 10W |
Maximum Processing Size, | 610mm×460 mm(24″×18″) |
XY Platform Maximum Operating Speed | 50m/min |
Positioning accuracy | ±3µm |
Repeat accuracy | ±1µm |
System Processing Precision | ±20µm |
Galvanometer scanning range | 50mm X 50mm |
Cutting Thickness | ≤1mm |
Power | AC 220V/50Hz/2.2KW;380V/50Hz/5.5KW |
Vacuum Requirements | 516m3/h |
Overall Dimensions | 1818mm×2317 mm×1550 mm |
Weight | 3500kg |
Environmental Temperature | 20ºC±1ºC |
Humidity | <60%RH (No dew) |
Ground Amplitude | <5µm |
Vibration Acceleration | <0.05G |
Ground Pressure | 2200kgf/m2 |
Industry-specific control machine, computer equipped flexible processing software | Motion control card and industry machine control mode 100G Equipped with 17 screens, 100G hard disk standard G code, Gerber data, CAD-compatible |
