Table Size:
1500X360 Mm
Table Travel:
1000/320/380 Mm
Type:
Worktable Milling Machine
Structure:
Lifts
Controlling Mode:
Artificial
Automatic Grade:
Semiautomatic
Precision:
High Precision
Object:
Metal
Product Description

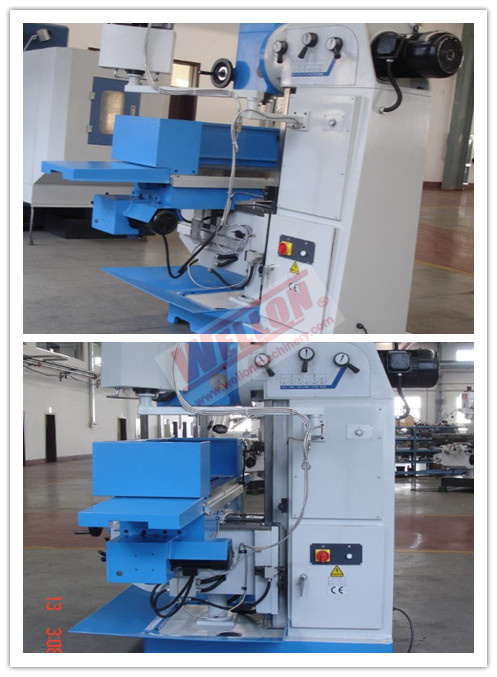

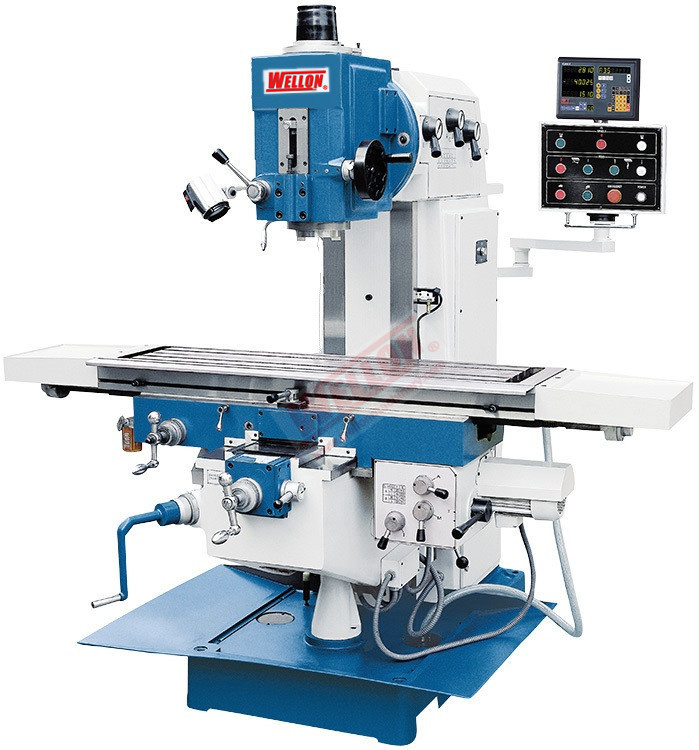

XL5036B Vertical lifting milling machine is a universal metal-cutting machine tool. Its spindle taper hole can be installed directly or by attachment with variety of cylindrical knife, molding knife, end miller, angle miller and other cutting tools. It is applied for process the plane, bevel, groove, hole of various parts. It is the ideal equipment in many professions, such as Machinery, Molds, Instruments, Meters, Automobiles, Motorcycles, etc. Characteristics: A. Spindle sleeve can be manually micro-feeding, and set limit device, milling head can be adjusting rotation 45 ° Counter-clockwise. B. Table can be manual feeding vertically or horizontally, and the table can lift vertically. At the same time, vertical and horizontal mobility can also achieve fast-forward, mobile to mobile feeding and vertical movements; C. Adopt 1200mm extended slider, and 1500mm length work-table, the longitudinal travel of table up to 1000mm, has strong stability. D. The main transmission and feeding are used gear speed change mechanism; It has 12 classes different speed, so the range of speed adjustment is widely. E. Spindle bearing with tapered roller bearings, bearing capability, and using dynamic braking, with a big braking torque, stop quickly, braking reliable. F. Good stability with rectangular guide. G. After super audio quenching, the table and guide have stronger intensity.
ITEM
UNIT
XL5036B
Spindle Taper
7:24 ISO50
Distance from spindle end to work-table
mm
70-450
Distance from spindle tovertical guide surface
mm
360
Range of spindle speed
r/min
60-1690(12class)
Rotation angle of vertical milling head
±45°
Table size
mm
1500×360
Table stroke(longitudinal /Horizontal/Vertical)
mm
1000/320/380
Table longitudinal / Horizontal feed speed
mm/min
15-370(8class)540(fast)
Table vertical lifting speed
mm/min
590
Table T-slot number / width / distance
mm
3/18/80
Power of main driving motor
kW
4
Power of table feeding motor
W
750
Power of table lifting feed motor
W
1100
Power of cooling pump motor
W
90
Cooling pump flow
L/Min
25
Net/Gross Weight
kg
2230/2400
Overall Dimension
mm
2380×1790×2100
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
XL5036B Vertical lifting milling machine is a universal metal-cutting machine tool. Its spindle taper hole can be installed directly or by attachment with variety of cylindrical knife, molding knife, end miller, angle miller and other cutting tools. It is applied for process the plane, bevel, groove, hole of various parts. It is the ideal equipment in many professions, such as Machinery, Molds, Instruments, Meters, Automobiles, Motorcycles, etc.
