Top Roller Shaft:75mm:
Bottom Roller Shaft:65mm
Product Description
Round Bending Machine, Manual Section and Pipe Rolling Machine, Steel Cound Bar Bending Machine, Round Pipe Bending Machine, Round Steel Bar Bending Machine, Hydraulic Round Bending Machine, Circle Pipe Rolling Machine, Three-Roller Bending Machine, Three-Roller Rolling Machine, Bending Machine, Bending Machine Manufacturer, Bending Machine with 3-Roller,Hydraulic Section Bending Machine, Pipe Rollig Machine, Section Bender, Bending Machine, Profile Bender, Circle Rolling Machine, Pipe Roller
WHY CHOOSE HAVEN BRAND MACHINE: 1) High quality with competitive price 2) 15 years export experience 3) CE,SGS, ISO Certificated 4) OEM SERVICE AVAILABLE 5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE) 6) 14 months quality warranty 7) Over sea engineers available for problem shooting

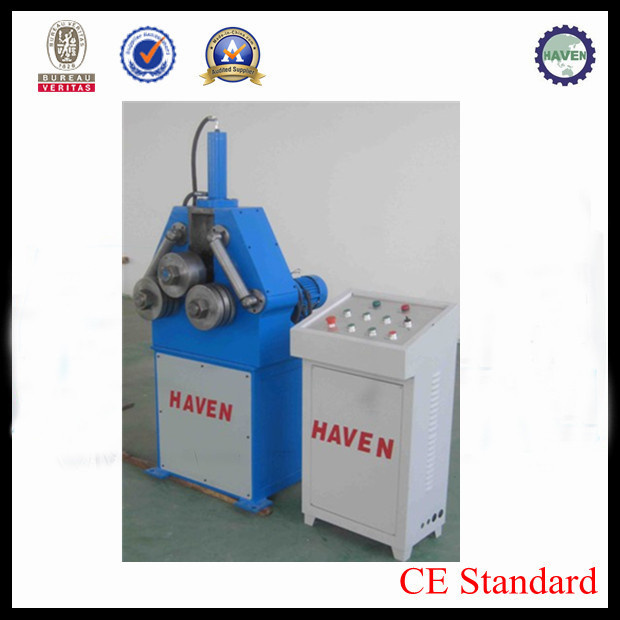

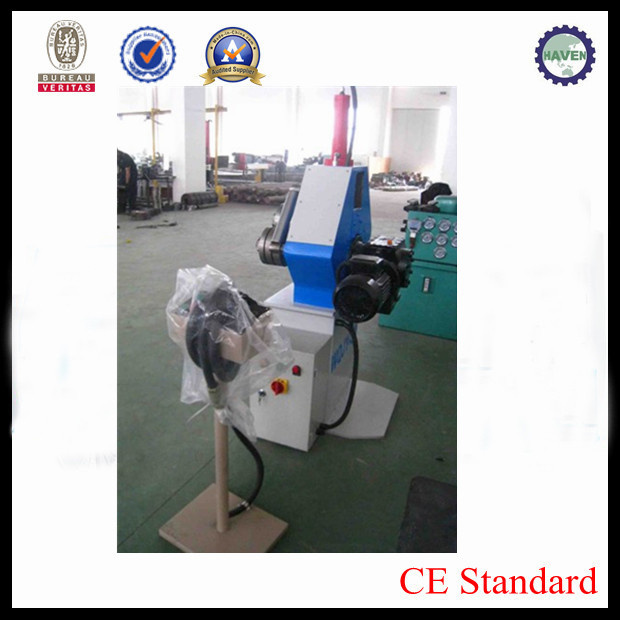

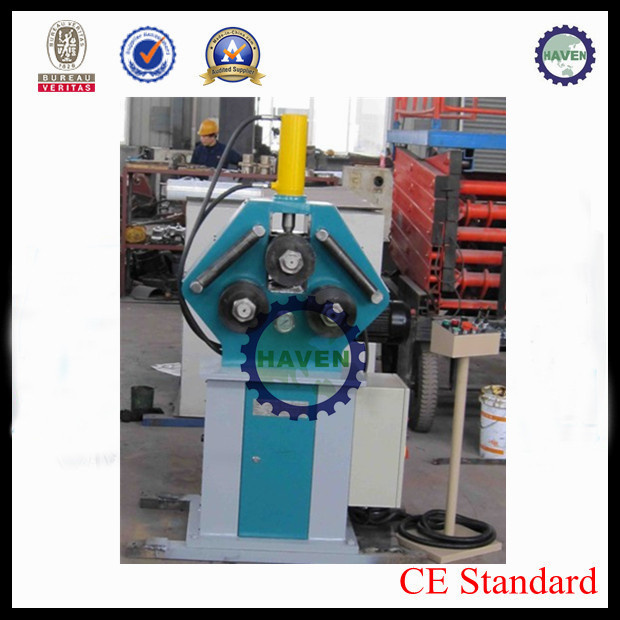

Top roller are driven ( down - upper movement ) with hydraulic system
Bottom rollers are driven with motor and gear reducer
One set of standard bending mould is fixed on the machine
All main components (motor, hydraulic parts, gear reducer) are from China famous brand
Main specifications Top roller shaft φ75mm Bottom roller shaft φ65mm Mould material 42CrMo Mould size φ180x50mm Rolling speed 4-5m/min Motor 2.2KW Gear reducer China famous brand Machine over dimension 1250*800*1600mm Machine weight 820kg
Model
W24Y-500
Bendlimit(MPa)
δs=250
Round Pipe
Max. OD
42
wall thickness
4
min.bending dia.
500
Round Bar
Outer Diameter
30-45
min.bending dia.
450
Square Pipe
max.section
45
wall thickness
3
min.bending dia.
800
Square Pipe bend in ease way
max.section
45
wall thickness
12
min.bending dia.
500
Flate Pipe bend in hard way
max.section
70
wall thickness
18
min.bending dia.
650
Angle Steel incurvature
max.section
40×5
min.bending dia.
800
Angle Steel excurvature
max.section
50×5
min.bending dia.
800
U steel incurvature
U steel Model
8
min.bending dia.
700
U steel excurvature
U steel Model
8
min.bending dia.
700
