Name:
Magnetron Sputtering Coating Machine
Model:
Jel-0910, Jtl-1110, Jtl-1312
Chamber Size:
D1100mm*H1000mm, D900*H1000mm
Technology:
Magnetron Sputtering Coating
Warranty:
1 Year
Coating Film:
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
Coating Color:
Silver, Golden, Black, Rose Gold, Pink, Bronze
Application:
Jewelry, Watch, Mobile Phone Shell etc.
Control Mode:
Automatic PLC Touch Screen Control
Coating:
Vacuum Coating
Type:
Jewelry/Watch Ion Gold Coating Machine
Substrate:
Magnetron Sputtering Coating Machine
Product Description

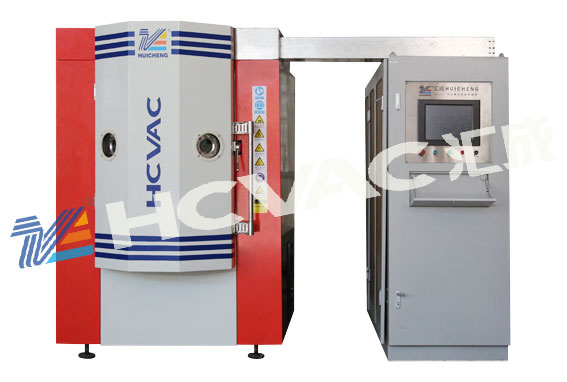

Watch and Jewelry Magnetron Sputtering Vacuum Coating Machine
This machine is used for steel jewelry and watch or alloys jewelry and watch to get IPG.IPS,IPR IPB, rose gold Platinum coatings etc. It's a environment protective equipment, no waste gas and no waste water, The main feature of IPG pvd coating machine is low cost , and adhesion of coating is stronger than tradition electroplating.
Usually for jewelry and watch plating is using MF sputtering coating machine. Middle frequency sputtering vacuum coating machine mainly integrate the technology of MF magnetron sputtering and electric arc ion evaporation coating, combining the ion source and the pulse bias voltage. It is fully automatic control when coating films.
Applied industry: Ipg Jewelry Vacuum Coating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Please feel free to contact us for further information!
Contact: Lillian Yang Mobile:0086-13825720037
Technical parameter:
Mode Dimension
JTL-900
JTL-1100
JTL-1300
JTL-1600
Φ9001000mm
Φ11001000mm
Φ13001200 mm
Φ16001200 mm
Coating mode and main confirguration
3 electric-arc+2 pairs of plane rectangular cathode
6 electric-arc+2 pairs of cylindrical cathode
5 electric-arc+4 pairs of cylindrical cathode
6 electric-arc+8 pairs of cylindrical cathode
Film Types
Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films
Power source
Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply.
Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa
Workpiece motion mode
Public rotation Frequency control: 0-20 rotation per minute
Measure mode
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode
Full automation control system PC+PLC/PC+HMI
Remark
We can design the dimension of the equipment according to customers special technique requirement.
