Ceramic Material:
Yttria Stabilized Zirconia
Density:
6.00 g/cm3
Color:
White
Moh's Hardness:
9
Young's Modulus:
205 Gpa
Compressive Strength:
2200 Mpa
Flexural Strength:
900 Mpa
Thermal Conductivity:
2.2 W/M.K
Thermal Shock Resistance:
280 - 350 T(C)
Max. Working Temperature:
800 C
Corrosion Rate:
0.001-0.01
Product Description

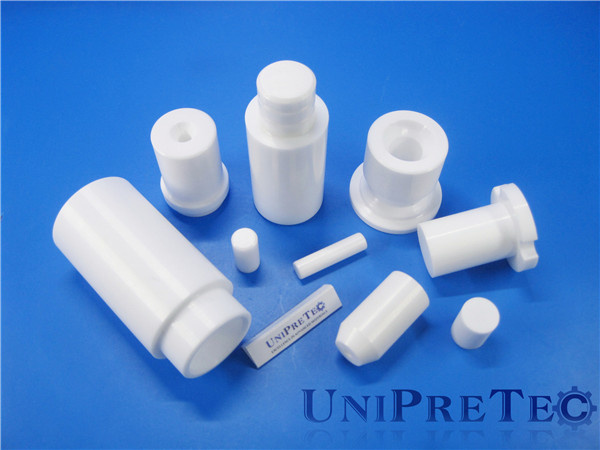

Wear Resistant Zirconia Ceramic Extrusion Dies
(1). Excellent in electrical insulation;
(2). High hardness and wear/corrosion resistance;
(3). High working temperature;
(4). Good thermal shock resistance;
Zirconia is an extremely refractory material. It offers chemical and corrosion inertness to temperatures well above the melting point of alumina. The material has low thermal conductivity. It is electrically conductive above 600° C and is used in oxygen sensor cells and as the susceptor (heater) in high temperature induction furnaces. With the attachment of platinum leads, nernst glowers used in spectrometers can be made as a light emitting filament which operates in air.
1. Key Properties of Zirconium Oxide
Use temperatures up to 1000° C
- High density
- Low thermal conductivity (20% that of alumina)
- Chemical inertness
- Resistance to molten metals
- Ionic electrical conduction
- Wear resistance
- High fracture toughness
- High hardness
2. Typical Uses of ZrO2
- Precision ball valve balls and seats
- High density ball and pebble mill grinding media
- Rollers and guides for metal tube forming
- Thread and wire guides
- Hot metal extrusion dies
- Deep well down-hole valves and seats
- Powder compacting dies
- Marine pump seals and shaft guides
- Oxygen sensors
- High temperature induction furnace susceptors
- Fuel cell membranes
Characteristics
Unit
95 Al2O3
99 Al2O3
ZrO2
GPSi3N4
BN
Glass Ceramic
Crystal Structure
-
hexagonal
hexagonal
tetragonal
hexagonal
hexagonal
-
Color
-
white
ivory
white
gray
white
white
Density
g/cm³
3.65
3.88
5.95
3.22
2.26
2.55
Water Absorption
%
0
0
0
0
0.0-1.0
0
Young's Modulus
Gpa
280
350
205
295
670
65
Vickers Hardness
Gpa
14
20
12
18-20
-
-
Flexural Strength
Mpa
280
300
900
650
51
100
Compressive Strength
Mpa
2000
2500
2200
2200
230
500
Thermal Conductivity
W/(m•K)
18-25
30
2.2
25
20
1.70
Thermal shock resistance
ΔT(C°)
220
180-200
280-350
450-650
>1500
25-100
Max. Working Temperature
C°
1500
1700
850
1200
960
800
Volume Resistivity
Ω . cm
>10^15
>10^14
>10^12
>10^14
10^13
10^16
Dielectric Constant
-
9.50
9.80
26
8.20
4.08
6.02
Dielectric Strength
kV/mm
16
22
-
16
375
40
