North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:
Plastic,Wood Powder,Additives
Final Products:
WPC Profile
Width:
Max.810mm
Thickness:
Max.140mm
Capacity:
Max.550kg/H
Granulator:
Available
Material Mixing:
Mixung Unit
Material Loading:
Screw Loader
Co Extruder:
Available
Collecting:
Stacker
Certification:
ISO9001:2008
Automation:
Automatic
Computerized:
Non-Computerized
Screw:
Double-Screw
Customized:
Customized
Product Type:
WPC
Product Description

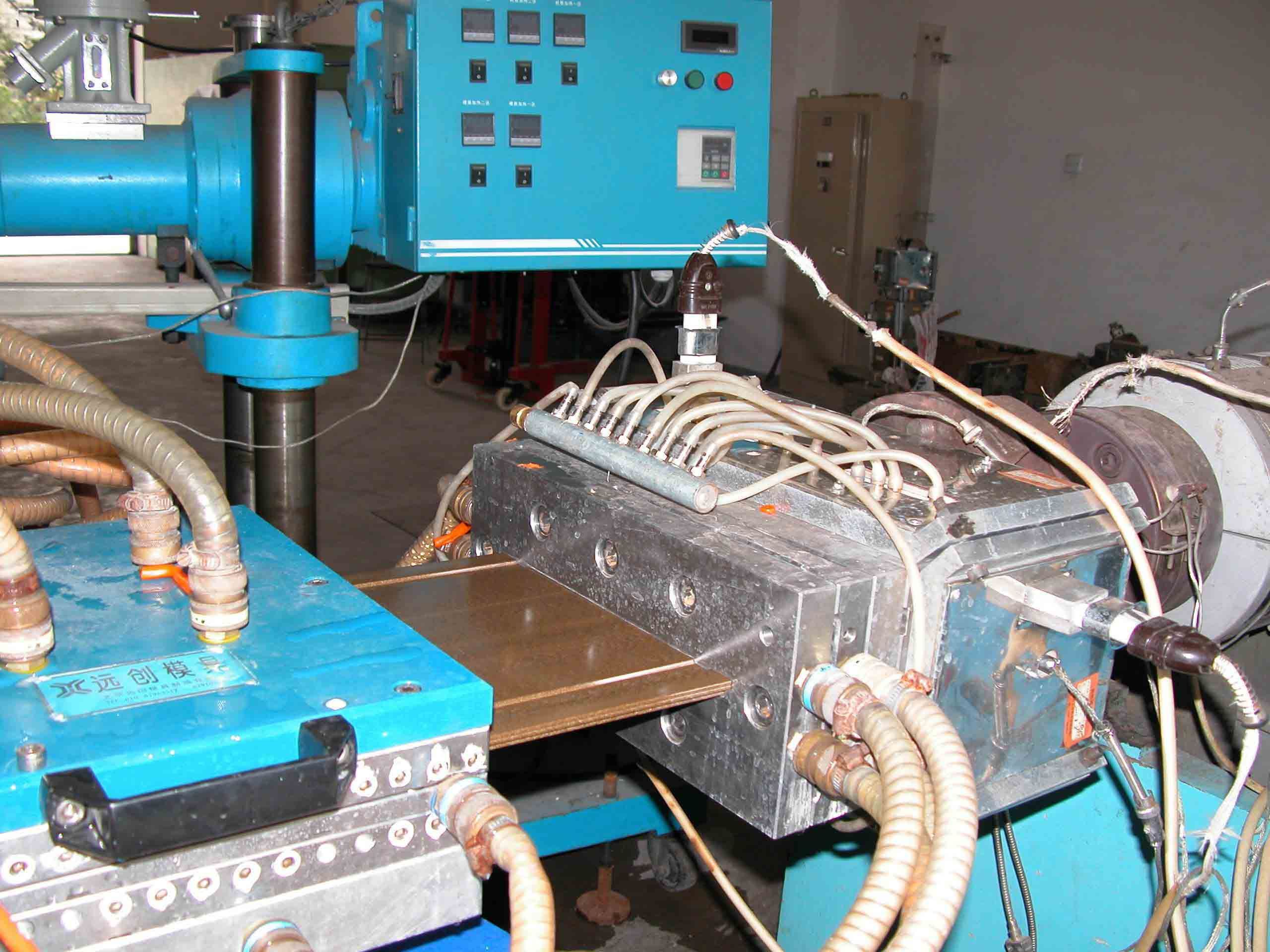

Wood Plastic Composite Extrusion Line
This production line is composed of Conical Twin-screw Extruder, Calibration Table, Haul-off, Cutter, Stacker.
This line could produce PVC door&window profile, PVC foamed profile, etc. By changing the Screws, Barrels&Moulds.
Model
LYF-180
LYF-240
LYF-400
LYF-610
LYF-810
Length of the calibration table (mm)
4000
6000
8000
9000
11000
Max profile width (mm)
180
240
400
610
810
Drawing speed (m/min)
0-8
0-6
0-5
0-5
0-5
Power of extruder
SJZ51/105
18.5KW
(22kw)
SJZ55/110
22kw
SJZ65/132
37kw
SJZ80/156
55kw
(75KW)
SJZ92/188
110kw
Length of the calibration table (mm)
4000
5000
6000
8000
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
