| Prod Model: |
YF Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Type: |
Conical Twin Screw |
| Motor: |
AC |
| CE: |
Yes |
| Size: |
Customized |
| Screw: |
Double-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
CE |
| Customized: |
Customized |
| Product Type: |
Wood Plastic Profile |
Product Description

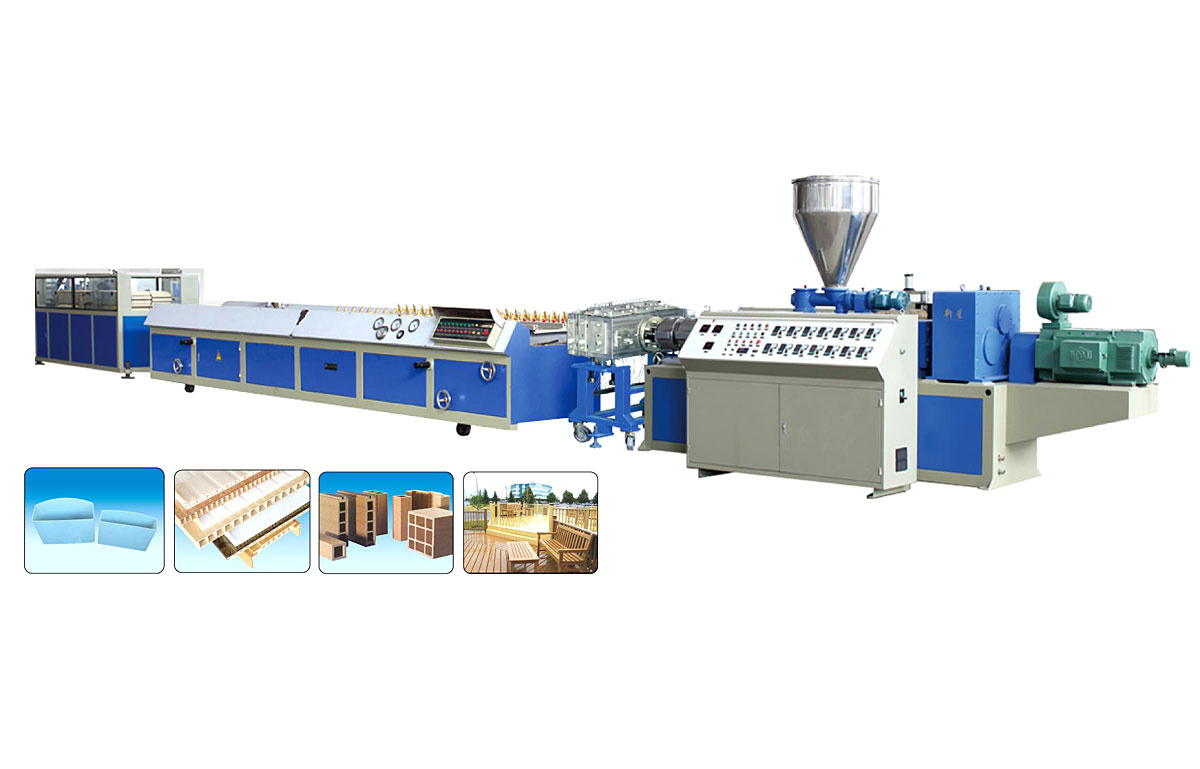

Wood Plastic Extrusion Machine Description:
1. Wood Plastic Extrusion Machine with special barrel and screw. Special design for WPC Proflie Floor producing.
2. Wood Plastic Extrusion Machine can produce kinds of profiles.
3. Wood Plastic Extrusion Machine employs the specially-designed screw barrel, mould, extrusion processing technique to produce wood plastic products.
4. Either single extruder two-stage mixing extrusion or two-stage extrusion after granulation can be adopted. It not only saves both electricity and space, but also has high productivity and stable extrusion pressure.
5. The preheating charger mounted on the top of host machine can draw out most of the water from wood powder firstly, making the charging section of the host machine more enriched and the plasticization mixing quite excellent.
6. The optimized screw design reduces the shearing force, unable to cut the wood fiber and making the stay of materials in barrel even.
7. The screw barrel, made from duplex metal materials, is wear and corrosion resistant and has a long service life.
8. It can produce PVC, PE and PP wood plastic profile bars with a strong material adaptability, mainly applied as trays, package plates, floors, outdoor decorative materials, etc.
9. In addition, the wood powder has a high addition up to 50~75 percent.
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-90 |
| Screw diameter(MM) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max. Rotational speed of screw(rpm) | 34.7 | 34.7 | 34.7 | 34.7 | 25 | 25 | 25 |
| Main motor(KW) | 15 | 18.5 | 22 | 30/37 | 55 | 55 | 110 |
| Capacity(kgs/h) | 60 | 80 | 120 | 220 | 320 | 320 | 600 |
| Capacity(kgs/h) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Net weight(kg) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
