Home Mould Products Xlb-D1100*1100*2 Newest Type Rubber Tile Vulcanizing Machine Tile Press Machine
Xlb-D1100*1100*2 Newest Type Rubber Tile Vulcanizing Machine Tile Press Machine
| Price: |
US $ 3000-20000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XLB-D1100*1100*2 rubber tile press |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
to Make Rubber Floor |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Certification: |
CE, ISO |
Product Description
Newest Type Rubber Tile Vulcanizing Machine / Rubber Tile Press Machine / Rubber Mat Manufacturing Machine

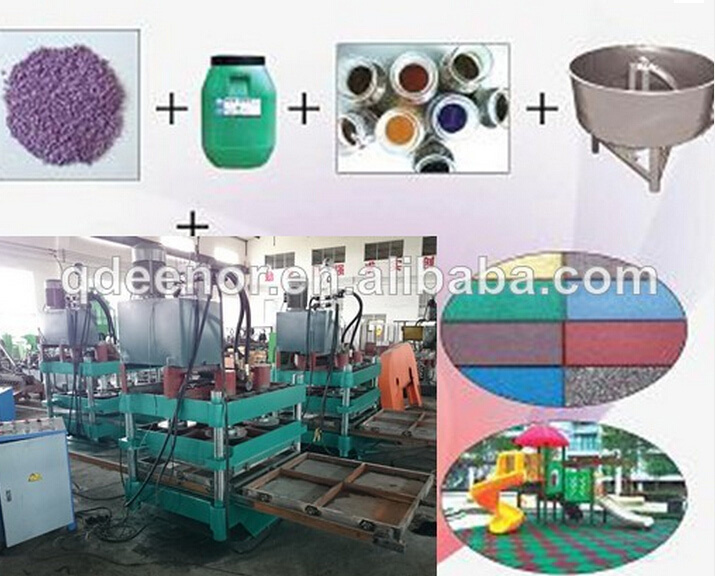

The complete machines are including 2sets mixers, rubber tile vulcanizing machine and molds. It is mainly produce various size of rubber tiles from 1-5mm rubber granules.
|
Item |
XLB-D1100*1100*2 rubber tile press |
|
Total pressure |
MN |
1.00 (100 tons) |
|
Hot plate size |
MM |
1100*1100 |
|
Plate thickness |
MM |
60 |
|
Plate clearance |
MM |
200 |
|
Working layer |
layer |
2 |
|
Hot plate quantity |
Piece |
4 |
|
Piston stroke |
MM |
200 |
|
Piston quantity |
Set |
4 x2 sets |
|
Heating mode |
Electrical heating |
|
Structure mode |
Four column structure(as picture) |
|
Operation system |
Automatic control |
|
Working pressure |
Mpa |
0.66 (6.6kg/cm2) |
|
Motor power |
KW |
5.5
|
|
One station is control 2 sets tile machine. |
Note:
1-the machine has automatic open & close moulds, automatic pull-push moulds, fill pressure, automatic alarm, curing time etc.
2-you can produce 500x500mm and 1mx1m of rubber tile by this press, only need to change the moulds.
3-its production capacity is 12 SQ.M per hour.
4-we also can according to your technology requirement, and design/manufacture the machine. |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
