Output:
250kg/H
Thickness:
20mm-60mm
Width Scope:
Max.800mm
Screw Size:
Single Screw
Product Type:
PS Board
Board Layers:
Single Plate
Automation:
Automatic
Computerized:
Non-Computerized
Certification:
ISO9001:2008
Product Description

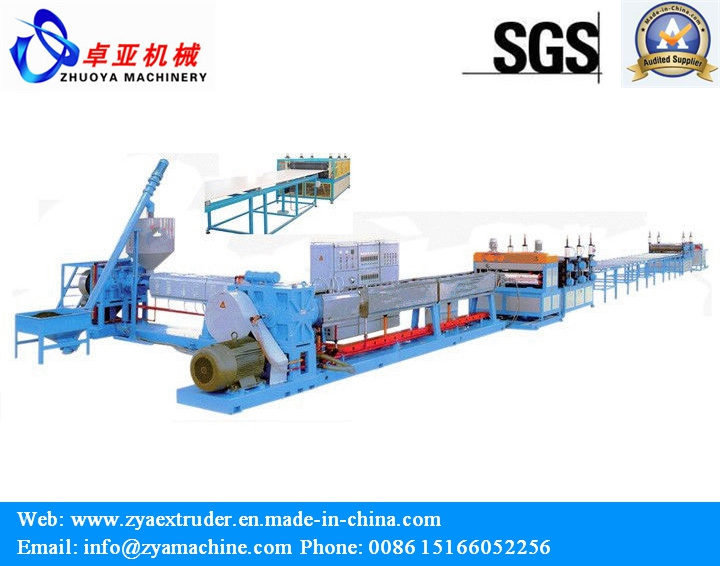

XPS Insulation Board Production Line
Application & Features: Comparing with other traditional insulation materials, such as EPS, PU and Rock wool, XPS is improved in insulation, moisture proof, compressive strength, durability, convenient installation and low cost. XPS is widely applied to heat preservation and insulation systems, moisture proof and obstruct systems, with promising potential market.
Main configuration: Feeding system/First extruder/Hydraulic mesh exchanger/ Second extruder/Mould/Calibrator/First haul-off unit/Longitudinal cutter/Cross cutter/Second haul-off unit/Controlling system/Packaging system.
Model
Unit
XPS-135/150
XPS-150/170
XPS-170/200
Extruder
135/150
150/170
170/200
Heating power
kw
50
52
58
68
78
100
Driving motor power
kw
75
90
90
110
110
132
Thickness of board
mm
20,25,30,40,50,60,75,80
20,25,30,40,50,60,75,100
40,50,60,75,100,120
Width of board
mm
600,900
600,900,1200
600,900,1200
Length of board
mm
1200,1250,2450,2500
Edge of board
SS flat head (SL lap joint, RC rain groove)
Output
kg/h
280-320
300-360
380-500
Installed capacity
kw
300
380
400
Dimensions(L×W×H)
mm
35000×10000×4000
35000×10000×4000
35000×10000×4000
Total weight
T
28
30
33
QingDao Zhuoya Machinery Co., Ltd. is the science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastics processing complete equipment.
The company always obeys the principle of "credit is the basis, quality is the life, innovation is the pursue, service is the main ", keeps the quality promise for customers, focuses on introducing and cultivating talent, cooperates with many science and research institutes, has strong technology power and perfect testing means, integrates advanced technology advantages and rigid equipments and has introduced many technologists with working experience in research and development and fabrication of plastics processing whole equipments, and understanding and experience accumulation in plastics process and plastics machinery design matching; All of these have ensured high quality and excellent performance of our fabrication of plastics machinery equipments.
