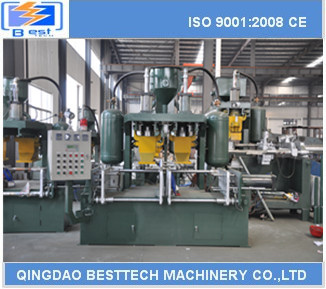

Besttech Z95 Series Core Shooter
Shoot core machine is a manufacturer of resin sand core business equipment, is through the special sand bucket by compressed gas into the mold cavity injection core sand, sand core is heated rapidly curing. Features: Meet the shell mold and shell core needs. Use PLC programming control Adjustable technics parameters Adopt permanent baffle board
Specification:
Model
Z955K
Z956K
Z957K
Z958K
Max Dimensions of mold board(mm)
550X400
650X400
750*580
850*600
Cover half thickness(mm)
150
180
180
200
Movable mold mini thickness(mm)
200
200
200
250
Compound die process (mm)
400
400
400
400
Max sand core weight(kg)
20
20
25
30
Sand hopper capacity(kg)
200
200
250
250
Heating mode
Electric heating
Electric heating
Electric heating
Electric heating
Electric heating power(kw)
25
30
40
50
System pressure(Mpa)
0.55-0.7
0.55-0.7
0.55-0.7
0.55-0.7
Operation mode
Manual/auto
Manual /auto
Manual /auto
Manual /auto
Our service
1. Reply your inquiry in 24 working hours. 2. Experienced staffs answer all your questions in fluent English. 3. Customized design is available. UEM&UBM are welcomed. 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff. 5. Special discount and protection of sales are provided to our distributor. 6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity. 7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order. 8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
