Product Description
Salient Features
Synchronized feed of 3 axles driven by a hydraulic system.
Support-free self-centering of 3 wheels during workpiece rolling.
Fast rotation of main axle and least deformation of workpiece in 3-wheel rolling process (recommended for thin wall hollow pipe fittings).
Main Technical Parameters

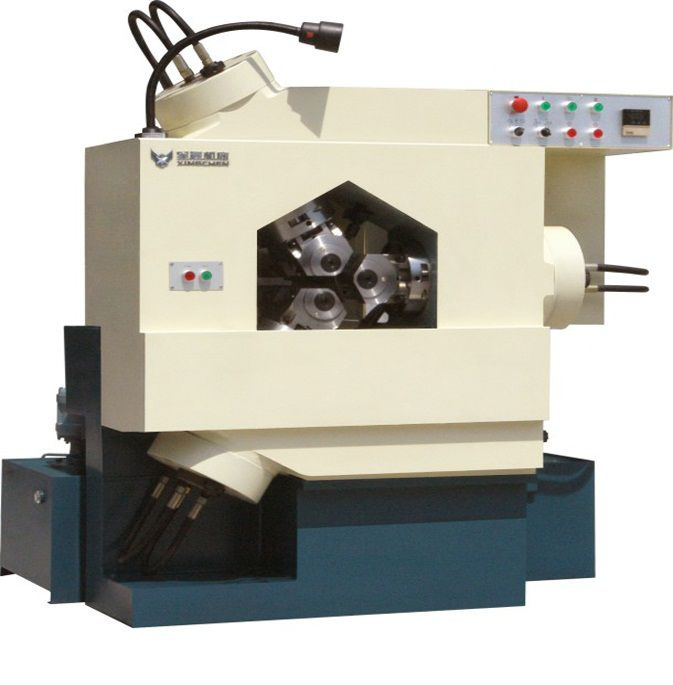

ZP28-12.5 3-Axle Thread Rolling Machine
Max. rolling pressure
KN
125
Rolling thread range
Max. diameter
Radial feed
mm
90
Axial feed
mm
50
Max. pitch
Radial feed
mm
4
Axial feed
mm
4
Rolling die range
Max. outer diameter
mm
150
Aperture
mm
54
Max. width
mm
75
Max. center distance btw. main axis
mm
100
Main axis rotation
r.p.m.
90.120
Main axis inclination
Feed travel
mm
5
Center height
mm
900
Gross power
KW
5.7
Dimensions(L*W*H)
mm
1390*1750*1600
Packing dimensions(L*W*H)
mm
1800*1750*1900
Weight
Kg
3000
