Conductivity Factor:
0.17 W/Mk
Expansion Coefficient:
0.01-0.02 (24h, 25oc) %
Colour:
Black, White
Water Absorption:
18 Kv/Mm(25oc)
Dielectric Strength:
0.01 (1MHz)(25oc)
Hardness:
6±3 Shore a
Loss Factor:
2.8 (1MHz)(25oc)
Mixed Viscosity:
500±100 MP*as(25oc)
Mixing Ration:
10 :1 Weight Ratio/Volume Ratio
Outside View:
0.99 g/cm3(25oc)
Material:
Silicone Rubber
Appearance:
Liquid
Product Description

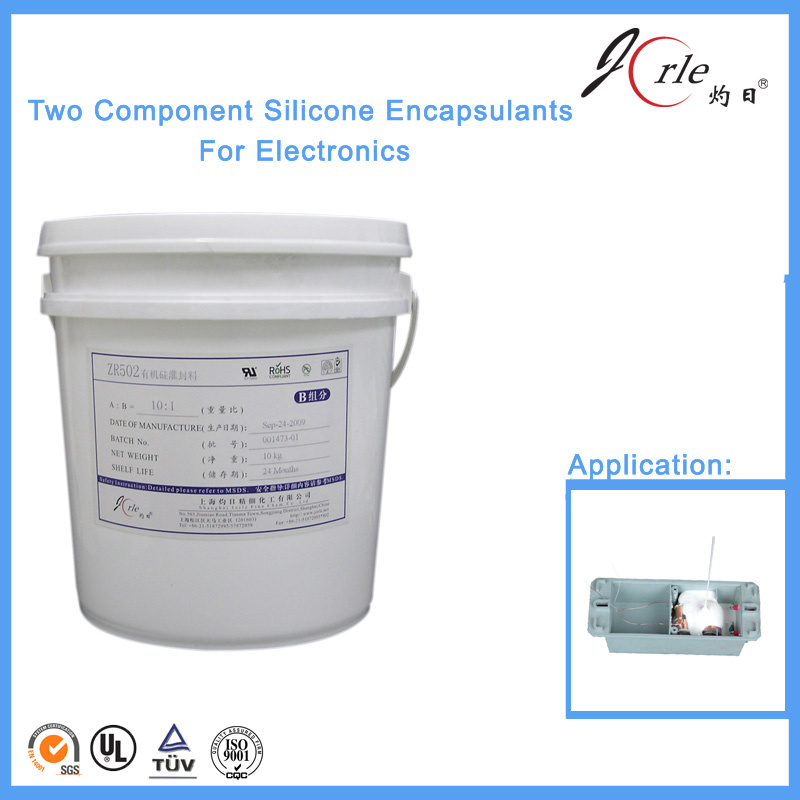

ZR502 practical silicone gel
ZR502 organic silicon encapsulating gum is a room temperature/heating curing and molding organic silicone materials. This kind of two-component elastic silicone potting, designed to protect in harsh conditions of electronic products.
ZR502 organic silicon encapsulating glue used new technology without heating can cured, would be curing. When used according to 100:10 (weight ratio or the volume in the thorough mixing proportion of A and B two components, products will be in A certain time, form of the elasticity of curing buffer material.
Packing:
Agent A: 22 kg/pail; Agent B:11 kg/pail
Storage and transportation:
1. Part A and part B need to avoid light, heat, save after sealed. (Can be used as the non-dangerous goods transport and storage)
2. Shelf life :2 years(25ºC)
Conventional performance
testing Item
testing standard
unit
A
B
Outside view
viscosity
visual inspection
---
Black/white viscous liquid
Clear liquid
1#
3#
density
GB/T 10247-2008
mPa@s(25ºC)
2900±200
≤50
≤50
Outside view
GB/T 13354-92
g/cm 3 (25ºC)
1.15
0.99
0.99
Operation process :
Testing item
Unit or conditions
value
1#
3#
mixing ration
weight ratio
100 : 10
mixing ration
volume ratio
100 : 11.5
Mixed viscosity
mPa@s(25ºC)
1800±500
Mixture density
g/cm 3 (25ºC)
1.12
operating time(1)
min(25ºC)
50±14
70±20
Curing time
ºC/hr
25/24
25/24
Typical performance:
Testing item
testing standard
unit
value
1#
3#
hardness
GB/T 531.1-2008
Shore A
30±5
20±2
conductivity factor
GB/T 10297-1998
W/mK
0.27
expansion coefficient
GB/T 20673-2006
μm/(m@ºC)
210
water absorption
GB/T 8810-2005
(24h,25ºC)%
0.01-0.02
dielectric strength
GB/T 1693-2007
kV/mm(25ºC)
18
Loss factor
GB/T 1693-2007
(1MHz)(25ºC)
0.01
dielectric constant
GB/T 1693-2007
(1MHz)(25ºC)
2.8
volume resistance
GB/T 1692-92
(DC500V)Ω@cm
1.2×10 15
