I. Technical parameters:
1. Output paper style: Tissue paper;
2. Raw material: Recycle paper;
3. Output paper weight: 13-40G/M2;
4. Net paper width: 1200mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7. Rail gauge: 1880mm;
8. Drive way: AC inverter speed, section drive;
II. Structure of main part:
1. Cylinder section: 1000mm× 1450mm stainless steel cylinder mould 1set, 380mm× 1450mm couch roll 1set, coated by rubber, rubber hardness HSD 38± 2.
2. Dryer section: 2000mm× 1450mm alloy dryer can 1set, 350mm× 1450mm touch roll 1 set, coated by rubber, Rubber hardness HSD 90± 2, dryer can is equipped with double layer exhaust hood of dryer can, pneumactic loading device.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
Paper making equipment and pulping process flows
The process flows of toilet paper: Waste paper or wood pulp--high concentration aquapulper--high frequency vibrating screen--pulp pump--hydrascreen -- bleacher -- propeller-- pulp pump -- efficient double disc pulp grinder -- pulp pump-- centrifugal screen -- pulp pump -- slag separator -- 1092 type paper machine -- full-automatic rewinding perforating machine -- band saw paper cutter -- sealing machine -- marketing
|
NO. |
Item |
Qty(set) |
|
1 |

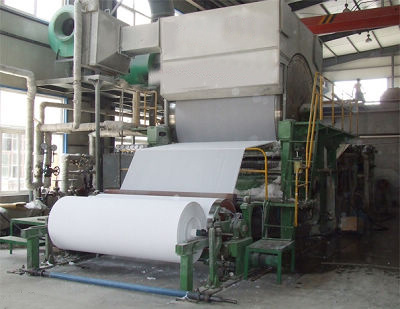

1092mm tissue paper machine |
1 |
|
2 |
double layer Exhausted hood of dryer can |
1 |
|
3 |
700mm axial-flow ventilator |
1 |
|
4 |
Model-33 Roots vacuum pump |
1 |
|
5 |
1092mm winding machine |
1 |
|
6 |
1092mm rewinding & perforating machine |
1 |
|
7 |
1092mm paper cutting machine |
1 |
|
8 |
Suction box |
1 |
|
9 |
3m 3 high consistency hydrapulper |
1 |
|
10 |
0.9m 2 High frequency vibration screen |
1 |
|
11 |
380mm double disc pulp refiner |
1 |
|
12 |
35m 3 bleacher |
2 |
|
13 |
700mmThruster |
4 |
|
14 |
606sand remover 3 pcs |
1group |
|
15 |
4 inch pulp pump |
4 |
|
16 |
1ton boiler(burn coal) |
1 |
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.
We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.
1. Following is main introduction of our company:
(1) total area of factory: 20, 000m2;
(2) total qty of workshop: 4;
(3) workers: 110 workers;
(4)engineer qty: 25 engineers;
2. Why you choose us?
(1) professional engineer team with 30years experience;
(2) we can supply you turn -key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualifiedly product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;
3. About shipment:
1. Sea transportation and rail way transportation is our main shipment way.
2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;
We hope to establish friendship and business relationship with friends from all over the world.
