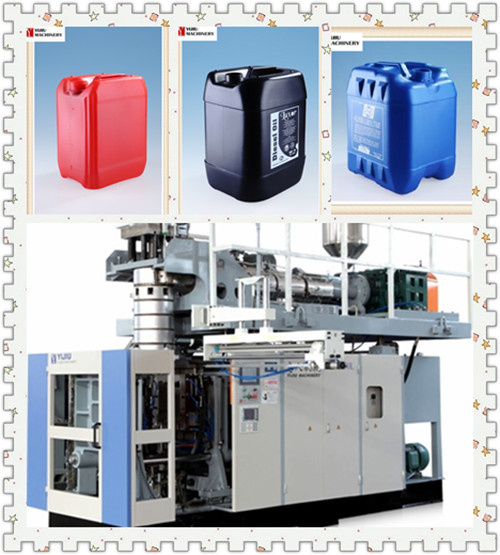

10L -30L plastic blow moulding machine
This machine is made up of plasticizing system, die head, clamping structrue, hydraulic system, electric system, pneumatic system and cooling system, Product is suitable for packaging of, petroleum, liquid, , food productions and special-shaped products with the volume up to 30L. Available material PE, PVC. PP, PETG...
Main
parameter |
Available material |
PE,PP^^ |
Max. Product Volume |
30 |
(L) |
Dry Cycle |
650 |
(pcs/h) |
Machine Size |
4.5*2.4*3.5 |
(L*W*H)(m) |
Machine Weight |
11.5 |
(Ton) |
Installed capacity |
72.9 |
KW |
Plasticizing
system |
Screw Diameter |
80 |
(mm) |
Screw L/D Ratio |
25 |
L/D |
HDPE output |
100 |
(kg/h) |
Screw Heating Zone |
4 |
(Zone) |
Screw Drive Power |
30 |
(KW) |
Extrusion
die head |
accumulator die head |
NO. of Heating Zone |
4 |
(Zone) |
Die Heating Power |
11.9 |
(KW) |
Max. Die Diameter |
300 |
(mm) |
Accumulator capacity |
4 |
(L) |
Opening
and clamping system |
Clamping Force |
180 |
(KN) |
Mold Stroke |
400-900 |
(mm) |
Mold Template Size |
760*660 |
(W*H)(mm) |
Pneumatic system |
Blowing pressure |
0.8 |
Mpa |
Air consumption |
0.8 |
M 3 /MIN |
Hydraulic system |
Oil pump power |
7.5 |
Kw |
Cooling system |
Cooling water pressure |
0.3 |
Mpa |
Water consumption |
60 |
L/MIN |
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.
We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.
Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.
Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.
To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.
No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.
Welcome to Yijiu Machinery!
