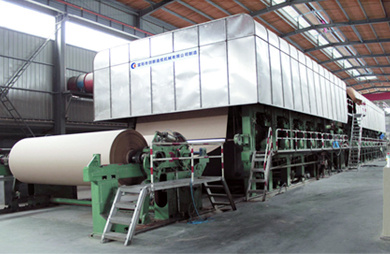

1575mm Kraft Paper Machine

I. Technical parameter:
1. Raw material: Waste paper, virgin pulp, occ;
2. Output paper style: Corrugating paper;
3. Output paper weight: 40-240G/M2;
4. Net paper width: 1600mm;
5. Capacity: 8-10T/D;
6. Width of cylinder mould: 1950 mm;
7. Rail gauge: 2400 mm;
8. Drive way: AC inverter speed, section drive;

II. Structure and characteristic of main part:
1. Cylinder section: Φ 1500mm× 1950mm stainless steel cylinder mould 2 sets, Φ 450mm× 1950mm couch roll 2 set, φ 400× 1950mm reverse roll 1set, coated by rubber, rubber shore hardness 38 degree± 2.
2. Press section: Φ 500mm× 1950mm marble roll 1 set, Φ 450mm× 1950mm rubber roll 1 set, coated by rubber, rubber shore hardness 90 degree± 2.
3. Dryer section: Φ 2500mm× 1950mm cast iron dryer can 2 set, Φ 500mm× 1950mm touch roll 1 set, coated by rubber, rubber shore hardness 90 degree& plusmn; 2.
4. Drive way: AC inverter speed, section drive.
5. Pneumatic compression device.



FAQ
1.Why we choose your company, what could you do for me?
We have established for 10 years and have the stable production experience.
We use the best steel to guarantee the products' quality
Warranty:we make our machines one year warranty.
We will always give you heart to heart service
We always speak with facts and quality

 2. How we visit your factory and what will be the procedure?
Our company located in Zhengzhou city,Henan province, if you take plane, it needs about 2 hours from Guangzhou city, 1.5hours from shanghai city and 1 hour from Beijing.we will pick you up from airport as well as the train station. We will take you to see our machine running in our Chinese clients' paper mill. Welcome you and your team to visit us at any time!
3. Could your engineer teach and train our worker and stay in our factory for long time?
Yes, we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
 4. How much water, electricity should I prepare for producing 1 ton finished paper?
(1) Clean water: 5M3
(2) Electricity: 250kw/h
 5. Which kind of chemical I should prepare:
(1) Deinking agent
(2) Dispersing agent
(3) Bleaching agent
 6. How about your company orders?
(1)One set of paper machine line or part is supported by us
(2) If we have urgent needs, we'll do it for you

packing and shipping
Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.

How to get your suitable machine and production lines?
1.inquiry:contact us by email,phone,fax,skype,MSN etc.
2.negotiation:after getting our quotation,you confirm the paper machine model and specify the items you desire.
3.contract:place order and signing the agreement files.
4.production:as soon as we received first payment,we will start to produce machines.we will notify client to book the ship 15days in advance.
5.delivery: all the machines will be shipped according to contracted items.
6.installation:we will send engineers/technicians to install the whole production line.
After-sales service
1. Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.
2. Our company keep the contract and reputation. Quality first, products guarantee a year, as it is quality problem, free replacement.
3. For every purchase of our company's products, the company can send technicians to guide the installation and debugging, and can undertake the design of process and equipment installation.
4. Our company ensure that supply of parts discount all the year round

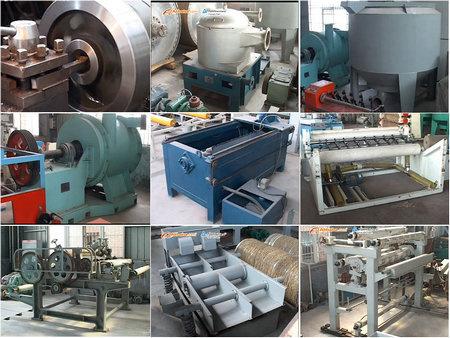

whole production line :
1.Chain conveyor
2.Hydraupulper, D-type hydraupuler, Drum type hydraupulper
3.High density de-slagging machine
4.Vibrating screen, mid consistency pressure screen, paper machine pressure screen, UV-flow pressure screen, inflow pressure screen,external flow pressure screen, center section energy saving pressure screen,fiber fractionating screen,light rejects screen,double drum pressure screen, coarse screen , fine pulp screen etc.
5.PZ series reject separator, Single-effect separating machine,, single fiber separating High Quality Heavy Impurity Cleaner/waste paper recycling processing machine/paper pulp making machines  machine etc.
6.Pulp pump
7.Double disc refiner, high taper fine grinding machine, double disc pulp grinding machine, conical refiner etc.
8.High taper helical propeller, square pulp pool stirrer
9.Other paper recycling machines such as grapple, cutter,drum unpacker., disc thickener, sludge dewatering machine etc.

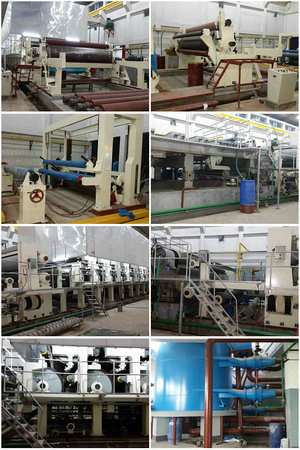

clients'workshop


our company
Zhengzhou Guangmao machinery manufacturing co.,ltd has developed into a much more competitive company since establishment in 1982. Our complete paper production line sells well in international market, such as Russia,Indonesia,Uzbekistan,Tajikistan,Nigeria,Uganda,Pakistan,Egypt,Bhutan,Fiji,
Brazil,Paraguay,Syria,Libya etc. We also establish good strategic cooperation with local distributor. Mainlymanufactures all kinds of paper machines, toilet paper production line, Kraft paper production line, copy/writing paper production line. We have 4 paper machine producing workshops and more than 110 workers and more than 20 engineers. Our factory total area is 20,000 square meters. We sincerely welcome clients from all over the world visit our factory, any requirement, please contact via email, we will reply you as the first priority.We have passed CE, SGS, ISO quality system certification and all manufacture processes are conducted by the standard strictly.
