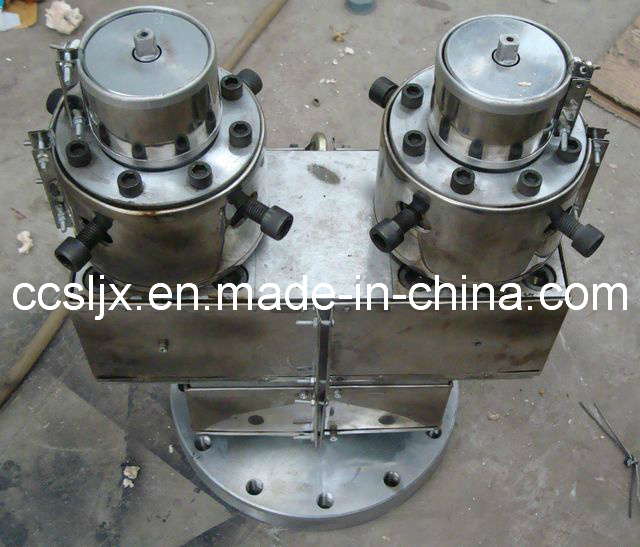

16-40mm PVC Double Pipe Mold is mainly used for the UPVC, PVC conduit pipes extruding with the diameter from 16-40mm.
All pipe sizes as following:
16mm, 20mm, 25mm, 32mm, 40mm
16-40mm PVC Double Pipe Mold includes the extrusion molds and caliberating sleeves.
Mold pressure grade: A B C
Mold mateial: 37Cr Hardening and Chrome plate treatment
Mold heating: Stainless steel heating plates
Mold temperature control zones: 6zones
Temperature control method: PID automatic temperature controller
Caliberating sleeves: Made of brass and surface mirror polishing
|
|
Wall Thickness Level |
|
A |
B |
C |
|
16mm |
1.0mm |
1.2mm |
1.6mm |
|
20mm |
|
1.25mm |
1.8mm |
|
25mm |
|
1.5mm |
1.9mm |
|
32mm |
1.4mm |
1.8mm |
2.4mm |
|
40mm |
1.8mm |
2.0mm |
|
