Quick Details
Condition: New Application: THREAD ROLLING Place of Origin: Jiangsu China (Mainland)
Brand Name: BOBO Model Number: BO-200 Voltage: 380V
Power(W): 11kw Dimension(L*W*H): 1700*1850*1550mm Weight: 2100kg
Warranty: ONE YEAR After-sales Service Provided: Overseas service center available
Packaging & Delivery
Packaging Detail: Wooden case
Delivery Detail: 10 days
Specifications
200KN hydraulic thread rolling machin is used to thread rolling various kinds of wall screw in construction, module threads.

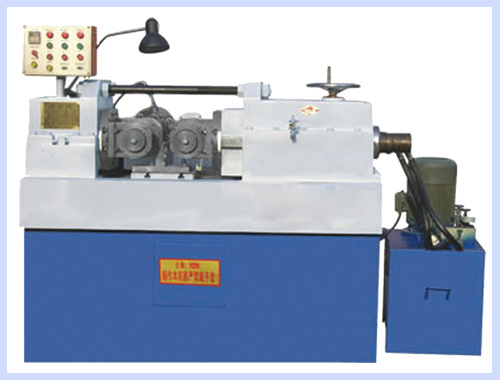

200KN Hydraulic Thread Rolling Machine
This machineis mainly used to thread rolling various kinds of wall screw in construction, module threads etc workpieces.
Features:
1. Suitable for processing small pitch and long large parts;
2. Skate with hydraulic feed drive, accurate positioning.
Specification:
ITEM PARAMETER
MODEL BO-200
RANGE OF PROCESSING DIAMETER ? 6-60mm
Max. PITCH 6mm
ROLLER APERTURE ? 75mm
Max. WIDTH OF ROLLERS 120mm
SPINDLE CENTER DISTANCE 150-210mm
MAIN SPINDLE SPEED 16/26/38/55/90 rmp
ACTIVE POWER 11kw
HYDRAULIC TRANSMISSION POWER 2.2kw
COOLING POWER 125W
DIMENSION 1700*1850*1550mm
WEIGHT 2100kg
Cang Xing Heng Machinery Co., Ltd Provide Lathe, Numerical Control Lathe, Milling Machine, Planer, Boring Machine.
