Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: Yafeng Machine Model Number: Double-wheel thread rolling
Machinable material: Solid Aluminium, iron, steel, stainless steel, copper Machenable length: No limits Noise: Lower than 80 dB
Main body material: Solid steel Thread Dia: 4-30mm Rolling Wheel Diameter: 120-170mm
Spindle Center Distance: 120-240mm Main Power: 5kw Spindle Inclination: ± 5°
Moving mode: Rolling
Packaging & Delivery
Packaging Detail: Packing in sturdy wooden cases or as your request. Wooden case size: 1.37m*1.33m*1.44m=2.63Cub. Always 4 sets for 20FT, 8 sets for 40FT.
Delivery Detail: Ship against payment
Specifications
Economic, efficient, quiet
Solid accurate roller
Easy operation and maintenance
Eccentric sleeve work
Apply to mass production

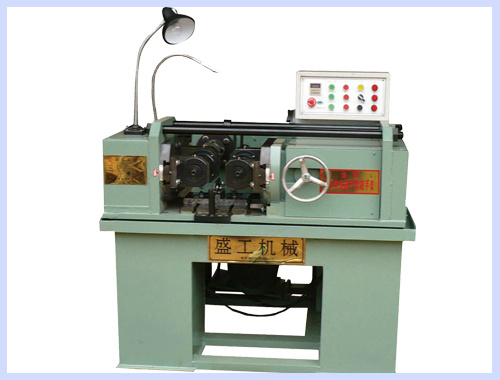

Powerful Small Thread Rolling Machine Double-wheel(Large scale)
Machine description:
1. Easy operation and maintenance beacause centre board structured with rolling wheel.
2. Equipped with eccentric sleeve, high efficient.
3. Availible to add vibrationg plate for Auto mass productions.
4. Main body welded with solid steel, strong and durable structure.
5. Widely used in thread processing of screw, needle car, bicycle, vehicle parts, hardware tools, etc.
6. High stability and accuracy, specialise in mass production of precise thread processing. Optional to choose stationary type and long type (with Auto feed vibrating disks).
Parameters of Bar Thread Rolling Machine
Machinable Diameter Φ 4-30mm Spindle Center Distance
120-240mm
Rolling Wheel Diameter Φ 120-170mm Spindle Speed 36/47/60/78r/min
Aperture of Rolling Wheel Φ 54mm Main Power 5Kw
Maximum width
Of Rolling Wheel 100mm Thread Length No limits, optional to add protection equipments.
Spindle Inclination ± 5° Weight 1500kg
Body size L1370mm× W1330mm× H1440mm
QUICK LOOK OVER MACHINE BODY
Up located operation manu for safety issue
Humanizing Work desk lamp
Auto feed vibrating disk for long type thread rolling
Solid and accurate rollers of Thread Rolling Machine
Partial products of thread rolling
