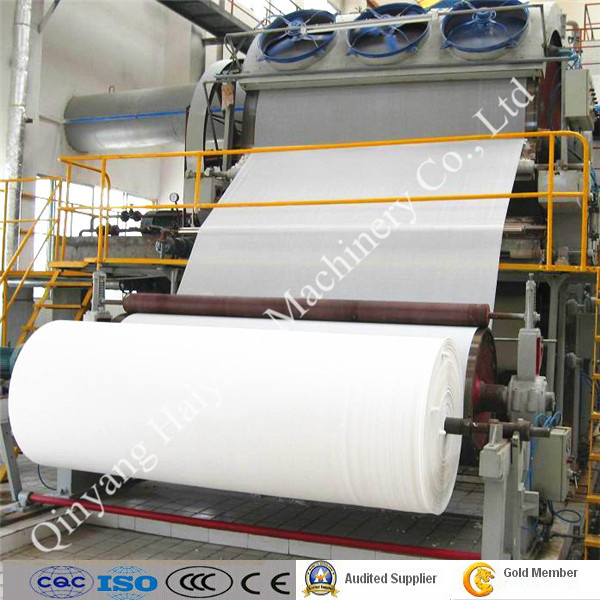

2400mm toilet paper making machine
Technical parameter
Raw materialwaste paper, wood pulp, virgin pulp
Output paperhigh and medium tissue paper, toilet paper
Net paper width2400mm
Output paper weight13-40g/m²
Working speed80-150m/min
Capacity8-10t/d
Rail gague3200mm
Drive wayAC inverter, adjustable speed, processing transmission
Main structure of the equipments
1. Cylinder part: One stainless steel plate type cylinder(φ 1500mm× 2850mm). One sealed pressure cylinder vat. One couch roll(φ 500mm× 2850mm), rubber hardness HS-38° C ± 2.
2. Dryer part: One dryer can(φ 2500mm× 2950mm), one touch roll(φ 550mm× 2850mm)pneumatic loading mechanism. Rubeer hardness HSD 90 ° C ± 2, dryer can equipped with one set of double air exhaust.
3. Reeling part: One roll cylinder(φ 1000mm× 2850mm), reel paper on sweat cylinder.
4. Rewinding and cutting part: Equipped with rewinding and perforating machine.
5. Driving&control part: AC frenquency convertor&adjustable speed, processing transmission
|
NO. |
Equipment |
Quantity |
|
1 |
2400mm single cylinder single wire and single felt high speed toilet paper machine |
1 |
|
2 |
Double-dryer breathing type exhaust hood |
1 |
|
3 |
Axial-flow fan |
1 |
|
4 |
Sealed pressure cylinder vat |
1 |
|
5 |
15 type roots vacuum pump |
1 |
|
6 |
Suction box |
2 |
|
7 |
8m 3 High consistence hydrapuler |
1 |
|
8 |
2m 2 High frequency vibrating screen |
1 |
|
9 |
35m 3 bleacher |
4 |
|
10 |
380 double disc refiner |
2 |
|
11 |
φ700 thruster |
6 |
|
12 |
CX0.9 centrifugal screen |
1 |
|
13 |
606 desander 5 sets |
1group |
|
14 |
Two-phase flow pump-100 |
6 |
|
15 |
Two-phase flow pump-150 |
4 |
|
16 |
2400mm rewinding and perforating machine |
1 |
|
17 |
Cutting machine |
1 |
|
18 |
Pump cabinet |
1 |
|
19 |
Frequency control cabinet |
1 |
|
20 |
2 boiler |
1 |
|
12 |
centrifugal screen |
1 |
|
13 |
de-sander 5 sets |
1group |
|
14 |
Two-phase flow pump-100 |
6 |
|
15 |
Two-phase flow pump-150 |
4 |
|
16 |
2400mmrewinding and perforating machine |
1 |
|
17 |
Cutting machine |
1 |
|
18 |
Pump cabinet |
1 |
|
19 |
Frequency control cabinet |
1 |
|
20 |
2 T boiler |
1 |
