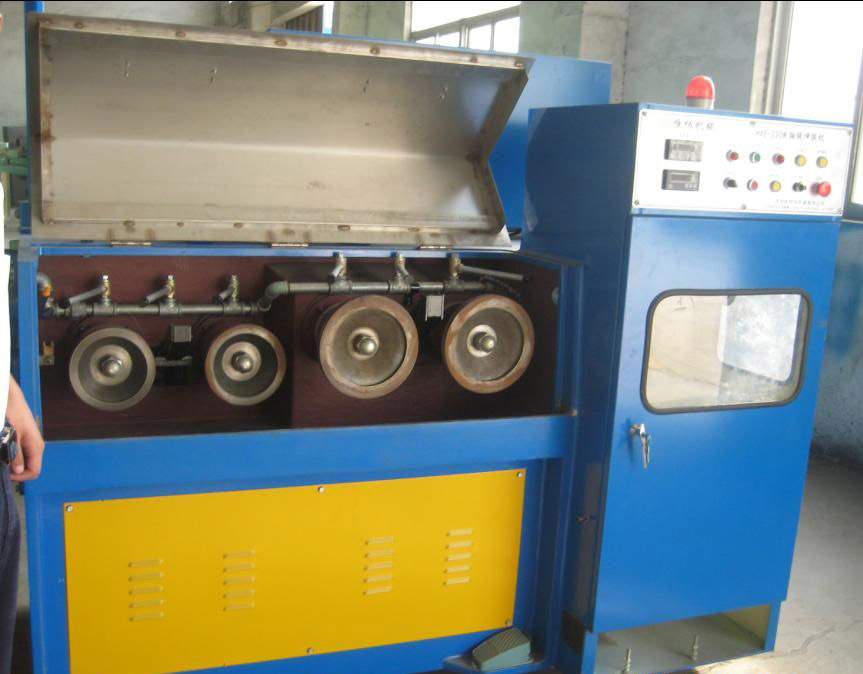

Machine type 24D
Control system Traditional analog type/By computer digital control
Inverter control Dual Inverter control
Drawing dies No. /Max. 24
Intlet diameter φ 0.45~φ 1.20mm
Outlet diameter φ 0.10~φ 0.25mm
Drawing line speed 2000m/min
Slip ratio of m/c 10%
Fix speed capstan slip ratio 6%
Frame Ironed cast
Capstan Ceramic plasma capstan
Main motor 7.5KW/11KW
Spooler motor 2.2KW/3.7KW
Capstandia. (Max. ) φ 194mm
Fix speed capstan dia. φ 159mm
Spool bobbin size φ 300or according to customers requirements
Send-out method Shaft type
Traversing unit synchronous motor +Belt
Transmission type By flat belts
Spooler control PID synchronous spooler
Detecting device Weight balance by swing arm
Tension control Weight balance type
Max. Loading capacity 20KG
Lubrication type Spray type
Brake Magnetic brake
Power source 380V 50/60Hz
Lubricant oil capacity 40Liter/minute
Machine dimension (mm) 2000× 1600× 1900
Machine weight 2500KG
