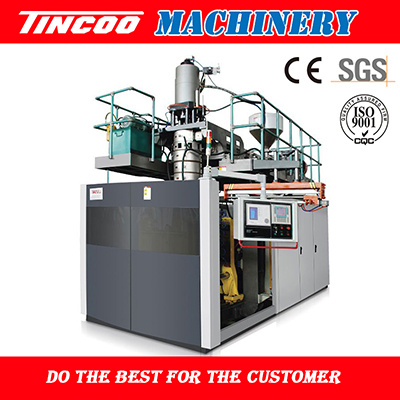

The 25L extrusion blow molding machinecan be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used.Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.
Features:
1.This series adopts new patent of two pull-rod type closing-mold device;
double-folding accumulator head;extrusion device and product taking-out device,
and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis
with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same
model is the model with ration of performance to price at present.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.
| Specification |
| DHB80 |
| Material |
| PE,PP |
| Max.container capacity | L | 25 |
| Number of die | set | 1 |
| Output (dry cycle) | pcs/hr | 500 |
| Machine Dimension | m | 4.2×2.3×3.6 |
| Total weight | ton | 12 |
| Accumulator head |
| DHB80 |
| Accumulator capacity | L | 5 |
| Power of die heating | KW | 18 |
| Number of heating zone | zone | 4 |
| Die diameter | mm | 300 |
| Injection pressure | Mpa | 8 |
| Max.injection speed | Kg/sec | 1.5 |
| Clamping Unit |
| DHB80 |
| Clamping force | KN | 210 |
| platen opening stroke | mm | 350-800 |
| platen size | mm | 740×600 |
| Max mould size | mm | 560×630 |
| Mould thickness | mm | 360-420 |
| Extruder Unit |
| DHB80 |
| Screw diameter | mm | 80 |
| Screw L/D ratio | L/D | 25:1 |
| Extruding Volume | Kg/hr | 100-120 |
| Screw rotation rate | r/min | 10-86 |
| Extruder heating power | KW | 20.2 |
| Extruder driving power | KW | 30-37 |
| Power Consumption |
| DHB80 |
| Oil pump power | KW | 22 |
| Servo motor power | KW | 4 |
| General assembly power | KW | 94.2,101.2 |
| Average energy consumption | KW | 38,42 |
| Air pressure | Mpa | 0.7 |
| Air consumption | m³/min | 0.6 |
| Cooling water consumption | m³/min | 0.4 |
